Hotel Security Inspection X Ray Baggage Scanner Local Network Supported FCC CE ROSH

Hotel Security Inspection X Ray Baggage Scanner Local Network Supported FCC CE ROSH

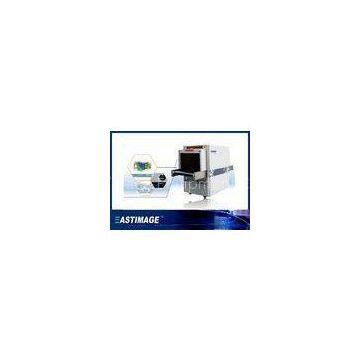

EI-V6040 X-ray Security Inspection Equipment for mail, parcels, handbags, briefcases, baggage etc. It can detect contraband, weapons, dangerous and illegal items.

EI-V6040 is based on user-friendly design with ergonomic operator control panel and adjustable control panel stand. It is widely used in the areas of critical infrastructure, government buildings, public transportation, international events, aviation, venues or hotels.

System Functions

Date & Time Display, Luggage Counting, System Working Timing, X-Ray Emission,Working Status Display, User Management, Fault Self-diagnosis and Maintenance Functions, Alarm Function, Urgent Stop, Limits of Authority Management for Operator,Self-check Power-On, Image Magnification Display, Save and Retrieval, Image Navigation,Bi-directional Scanning, Image Recognition Training, Network Interface,Browse, Save As, Plication.

Optional Features

High Density Area Alarm, Black Box, TIP Threat Image Projection, X-Auto Sight Contraband Auxiliary Recognition System, OTP Operator Training Program, One Key to Shutdown, Environment Protection and Energy Saving.

General Specifications

Tunnel Size..............................615 mm(W)× 415 mm(H)

Conveyor Speed......................0.2m/s

Conveyor Height......................682mm

Max. Load................................160 kg(Evenly distributed)

Image resolution......................17’’LCD 1280×1024

Image Processing System

Display.........................................Color & Black and white

Processing Function................F1/F2/F3 self-definition combination,

edge enhancement, negative,

the organic & inorganic excluding,

high & low penetration,

super enhancement, gray scale scan

Saves Capacity & Pull back...100,000 images / infinite review (the previous picutures)

Resolution...................................1280×1024

Processing & Gray Scale........24Bit real-time processing/8192

Enlargement...............................Up to 64X dynamic continuous zoom & panning

X-Ray Generator

Anode Voltage..........................160 KV(adjustable)

Beam Direction.........................From bottom

Cooling & Running Cycle......Sealed oil cooling & 100％

X-Ray Sensor..............................Multi-energy L photoelectric diode array detector

X-Ray Security

Single inspection dose rate......< 2μGy

Leakage...............................< 1μGy/h(5cm distance from outer),comply with the national and international safety standard

Film Safty............................According to the ISO1600(33DIN)High speed standard

Installation Data

Size ........................2050 mm(L)x 828 mm ( W)x 1290 mm(H)

Weight ..................600 KG

Working Temperature / Humidity.......0℃～+45℃／20%～95% (non-condensing)

Storage Temperature / Humidity........-40℃～+60℃／20%～95% (non-condensing)

Power Supply..........AC 220 V(+10%~-15%) 50±3(Hz)

Power Consumption......About 0.43(KVA)
