High Measuring Speed Frequency Domain Reflectometer Small Size Battery Power

FOB Price

US$ 4 - 5 / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Product Description

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

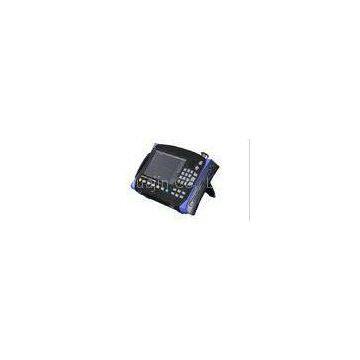

AV3680A Cable and Antenna Analyzer

Product Overview:

AV3680A Cable and Antenna Analyzer has advantages of fast measuring speed, high measurement accuracy, small size, light weight, battery power, touch screen operation and adjustable backlighting. It can measure return loss, standing wave ratio (SWR), impedance, phase, DTF (discontinuity point fixing), etc.
It is developed for onsite test and suitable for measuring the feeder line system of various communication base stations including trunking, GSM,PCS/DCS,CDMA,GPRS,WCDMA,CDMA2000,TD-SCDMA,LTE and paging system. AV3680A Cable and Antenna Analyzer can help the users make quick evaluation on the state of the transmission line and antenna system, improve the maintenance efficiency of the base station in operation and accelerate the installation and debugging process of the new base station during the installation, debugging and daily maintenance of the feeder line system.

Technical Specifications:

Model & Name Technical Index	AV3680A Cable and Antenna Analyzer
Frequency Range	1MHz～4GHz
Frequency Accuracy	Original Frequency Error	±2×10-6 (23℃)
Temperature Stability	±1×10-6/10℃(for 23℃)
Frequency Resolution	1kHz
Main Index After Calibration	Directivity	≥42dB
Source Match	≥31dB
Reflection Track	±0.08dB
Sweep Time	<1ms/CW(10kHz IF Bandwidth)
Power Supply	Adaptor	AC: 110V(1±10％)or 220V(1±10％),50Hz(1±5％)
Internal Battery	Operation Time:about 6 hours
Dimension	Length ×Width ×Depth =290mm×190mm×70mm
Weight	≤2.5kg(with battery)
Operation Temperature	-10℃～+55℃
Storage Temperature	-40℃～+70℃
EMC	Conform to GJB3947A-2009

Ordering Information:

Base Unit:

AV3680A Cable Antenna Analyzer 1MHz～4GHz

Standard Configuration

Item	Description	Quality
Standard Accessories	Three-wire Power Cord	1
AC-DC Power Adapter	1
Users Guide	1
CD	1
USB Cable	1
Internal Rechargeable Lithium Ion Battery	1
Car Charger	1
Certification	1

Options

No.	Description	Note
1	USB Power Measurement Software
2	USB CW Power Sensor AV87231	10MHz~18GHz
3	English-version Options	English software English user’s guide
4	N-DINA Adaptor	N-DIN Adaptor
5	Rechargeable Lithium Ion Battery	Backup Battery
