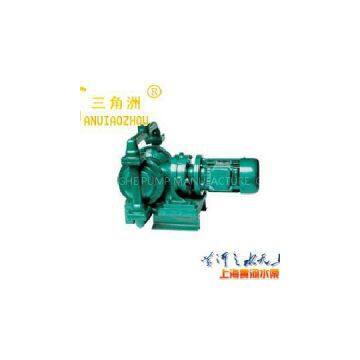

XDBY Series Electric Diaphragm Pump

Product name: XDBY series electric diaphragm pump Product category: diaphragm pump I. The product overviewXDBY type electric diaphragm pump which is newly researched and developed adopts XLD series cycloid pin wheel reducer for the transmission of power. The electric diaphragm pump is a new type of pump. In recent years,Website: , due to the breakthrough progress which has been made on the diaphragm material, more and more industrialized countries have used this type of pump, replacing part of the centrifugal pump, screw pump, which has been applied in the petrochemical, ceramics, metallurgy and other industries. The product design refers to the prototype of ABEL which is an American firm. The pump can be applied in low voltage with the export pressure equal to or lower than 3kgf/cm2. II. The main purpose1. A variety of highly toxic, flammable, volatile liquid.2. A variety of acid, alkali, strong corrosive liquids.3. Can transport the celsius with a higher temperature of 150 ℃.4. As the front stage pressure feeding device of all kinds of filters.5. Hot water recovery and recycling.6. Tanker, oil depot, oil loading and unloading.6. Tanker, oil depot, oil loading and unloading.7. Pump pickled cabbage, jam, mashed potatoes, chocolate and so on.8. Pump paint, resin, pigment binder.9. A variety of porcelain glaze slurry grouting mortar cement slurry.10. A variety of rubber latex, organic solvents, fillers.11. Absorb the water and residual oil in the tanker by the pump.12. Hops and yeast slurry, syrup and molasses.13. Pump shaft, tunnel, tunnel, sewage, sediment in the sewer.14. The absorption of a variety of special media. III. Technical parameterFlow: 0-20m3/h;Lift process: 30m;Power: 0.37-4kw;Speed: 1450r/min;Caliber: 10-100mm;Temperature: -15-+150℃;Self absorption height: 5-7m. IV. Model significance: XDBY series electric diaphragm pump product parameters Type Flow（m3/h) Life process(m) Absorption process(m) Equipped power(KW) Pump body materials Type of the equipped reducer casting iron aluminium alloy stainless steel rubber lining XDBY-10 0.75 30 3 0.55 ☆ ☆ ☆ / XLD3-35 XDBY-15 1.5 30 3 0.55 ☆ ☆ ☆ / XLD3-35 XDBY-20 2.5 30 3 1.5 ☆ ☆ ☆ / XLD3-35 XDBY-25 3.5 30 4 1.5 ☆ ☆ ☆ ☆ XLD3-35 XDBY-32 4 30 4 1.5 ☆ ☆ ☆ ☆ XLD3-35 XDBY-40 4.5 30 4 1.5 ☆ ☆ ☆ ☆ XLD3-35 XDBY-50 6.5 30 4.5 2.2 ☆ ☆ ☆ ☆ XLD3-35 XDBY-65 8 30 4.5 2.2 ☆ ☆ ☆ ☆ XLD3-35 XDBY-80 16 30 5 3 ☆ ☆ ☆ / XLF5-35 XDBY-100 20 30 5 3 ☆ ☆ ☆ / XLD5-35 Note: ☆－Yes                 ∕－None
