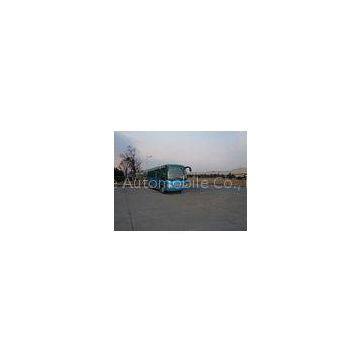

Battery Powered Small Public City Bus Blue 100 km / H 26 Passenger Leaf Springs
Feature:
1. Appearance: The bus has a flat, nice and plump appearance, full of modern senses. The new-style integral headlamps and rear lamps are trendy and unique, being the most attractive point on the appearance.
2. Having a newly-designed light-duty vehicle style, plump, smart and smooth lines, full of modern senses
3. The new-style integral headlamp is adopted, looking luxurious and magnificent.
4. When the air conditioner is fitted, the fully-closed side windows will be equipped, with an open view; where no air conditioner is fitted, the middle large-sized sliding window will be equipped.
5. The thoughtful care for the driver is embodied everywhere, like the driver seat, sun visor, driver fan, and up-and-down & fore-and-aft adjustable steering wheel.
6. The front and rear axles with high bearing capacity are adopted to improve the reliability of buses and meet demands for transport of large number of passengers.
Product advantages:
Compared with similar products, the bus has a higher safety index
Most competitive price
Energy saving and Environmental friendly
Specifications:
|
Specifications |
||
|
Model |
HM6661 |
|
|
Overall dimension (mm) |
Length |
6600 |
|
Width |
2240 |
|
|
Height |
2780/2990 |
|
|
Wheelbase (mm) |
3308 |
|
|
Max. Speed (km/H) |
100 |
|
|
Curb vehicle weight (kg) |
4200 |
|
|
Gross vehicle weight (kg) |
6600 |
|
|
Seating capacity (persons) |
26 seats (single door) /23 seats (double doors) |
|
|
ENGINE |
||
|
Model |
NQ120BN5 CNG Engine Euro V |
|
|
Type |
4-cylinder, in line, water-cooled, ECU, turbocharged, inter-cooling |
|
|
Displacement (cc) |
3759 |
|
|
Max. Power (hp/rpm) |
120/2800 |
|
|
Max. Torque (N-m/rpm) |
350/1400 |
|
|
Fuel tank (liter) |
80L gas bottle, 3 units; 50L gas bottle, 1 unit |
|
|
DRIVE |
||
|
Clutch |
Hydraulic, Single plate, dry type diaphragm spring |
|
|
Gearbox |
5 speed manual |
|
|
Max. gradeability (%) |
30 |
|
|
CHASSIS |
||
|
Frame |
Ladder shaped, ‘] ’ section |
|
|
Suspension, front/rear |
Leaf springs |
|
|
Shock absorber, front/rear |
Double action shock absorbers |
|
|
Steering |
Recirculating-ball |
|
|
Brake |
Air brake, drums type |
|
|
Power steering |
With |
|
|
Tires |
7.00-16 |
