Gray Cat5E Shielded Cable 4 Pair 24Awg 0.51Mm Copper Pass Fluke 300 M/Roll

Gray Cat5E Shielded Cable 4 Pair 24Awg 0.51Mm Copper Pass Fluke 300 M/Roll thumbnail-1
Gray Cat5E Shielded Cable 4 Pair 24Awg 0.51Mm Copper Pass Fluke 300 M/Roll photo-1
Negotiable MOQ: 1 Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
WONTERM
Place of Origin:
China
Model Number:
WT5803-SF
Contact Supplier Request Quote Chat Now
Shenzhen Xintaiyue Communication Cable Co.,ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WONTERM
Place of Origin China
Model Number WT5803-SF
Delivery Time:10 working days after received your payment
Certification:CE/FCC/UL/ROHS

Gray Cat5E Shielded Cable 4 Pair 24Awg 0.51Mm Copper Pass Fluke 300 M/Roll

Specifications:

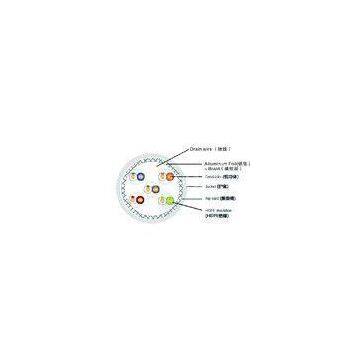

SFTP cat5e No. STRUCTURE MATERIAL
1 Conductor Bare solid copper
2 Insulation Colourcoded PE
3 Drain wire  BC
4 Polyester Optional
5 Rip cord  Optional
6 1st Shield PET/AL
7 2nd Shield BC/TC/AL
8 Jacket Lead free PVC or LSZH
Description Flammability grade CMX, CM, CMG, CMR
Rated temperature 60°C , 75°C, 90°C
Reference Standard UL444, UL1581
                                                                      ELECTRICAL CHARACTERISTICS
Frequency
MHZ		 Impedance
Ohm		 RLdB Attenuation
dB/l00m		 Next
dB		 Next power LFXTdB PSELFEXTdB
Sum dB
1.0 100±15 20.0 2.0 65.3 62.3 63.8 60.8
4.0 100±15 23.0 4.1 56.3 53.3 51.8 48.8
10.0 100±15 25.0 6.5 50.3 47.3 43.8 40.8
16.0 100±15 25.0 8.2 47.2 44.2 39.7 36.7
20.0 100±15 25.0 9.2 45.8 42.8 37.8 34.8
31.25 100±15 23.6 11.7 42.9 39.9 33.9 30.9
62.50 100±15 21.5 17.0 38.4 35.4 27.8 24.9
100.0 100±15 20.1 22.0 35.3 32.3 23.8 20.8


Applications:



Competitive Advantage:

1. Win-win Price: Factory price with high quality.

2. We offer OEM services.

3. Our products adopt green technology design.
