SGCC / SPCC Purplin Cold Roll Forming Machine for 1.5mm - 3mm C Shape Purlin
USD $4 - $5
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
5.5 KW Automatical Steel Rolling Forming Machine 100% Waterproof
-
Z Shape Steel Purplin Cold Roll Forming Machine , Rollforming Machinery
-
15KW Steel Purplin Cold Roll Forming Machine PLC Controlling System
-
Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler
-
Pre-punching Z Shape Cold Roll Forming Machine With Changeable Feeding Width
-
Chain Transimission Purpline Cold Rolling Form Machine with Cr12 Mould Steel Cutting Blade
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS

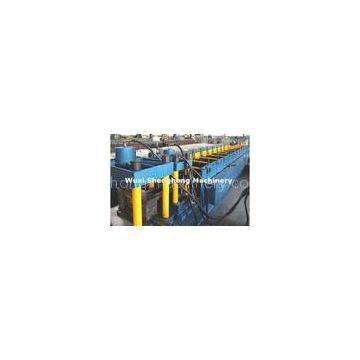

SGCC / SPCC Purplin Cold Roll Forming Machine for 1.5mm - 3mm C Shape Purlin
Product Information
C or Z shape purlins are made from hot/ cold rolled steel strips, and straightened, hole punched, cut to length, and roll formed by WLPM series C/Z changeable shape purlin roll forming machine. Through changing, this product line can make the change of the shape C or Z purlin, besides change different sizes of C or Z shape purlin. This change for shape and sizes of C/Z purlin can be realized by automatic mode, or manual adjusting mode.
C/Z shape purlin product line consists of uncoiling system, straightening system, hole punching system, shearing system, roll forming system, products support table, hydraulic system, automatic controlling system, and so on. It’s a high efficiency equipment of making purlin, which is suitable for current enterprises.
Working Flow
Decoiling the Sheet—→Sheet Guiding —→Coil Strip Leveling—→Roll Forming—→Punching for horizontal hole—→Punching for vertical hole —→Measure Length —→ Cutting the Panel—→Panels to the Supporter.
Suitable material for production
C & Z Purlin mainly use hot roll steel strip or hot dip galvanized steel strip at thickness 1.5～3.2mm. it is roll formed by C or Z shape roll forming machine
Main technical specification
| Fixing Dimension Total weight Controlling system Main motor power Quantity of Stands Working speed Hydraulic pressure Material of roller die Material of Cutting die Product range |
: 23000mm × 2400mm × 1400mm : about 13,000kg : PLC : 15kw; Hydraulic station power: 15kw : About 16 groups : 8000~10000mm/min : 18~20Mpa : GCr15 bearing steel with quenched treatment. : Cr12 mould steel with quenched treatment. : all the types from 100 to 250 |
Product feature and usage
The products of C or Z shape purline forming machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on
Applicable Area
Door Frame, Rall, Angle, Pallet Rack, Pack Post, Swage Beam Panel,Glass Wool Panel, Hoist Rail, Hand Rail, Car Molding, C-channel,Fire Shatter, M-bar, U-channel
Aseemble process Show
Packing Picture
