Pneumatic rubber fender yokohama fender construction size floating
Feature:
1, high safety level: our pneumatic fenders can stand the maximum pressure up to 4 times that the operating pressure
2, easy maintenance: our fenders just need inflation once every six months
3, low transportation cost: our fenders can be deflated and folded for transportation, thus saving about two thirds of the transportation cost
4, long lifespan: it is guaranteed that our fenders can be used for 10 years under normal conditions.
Description:

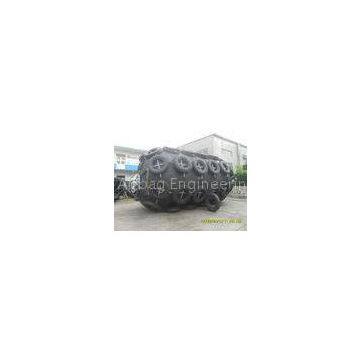

Pneumatic Fender which is made of synthetic-cord-reinforced rubber sheet with compressed air inside to enable it to float on the water and work as a shock absorber between two ships or between ships and berthing structures when they come alongside each other on the water.
Applicant:
1.ship to ship berthing
Accompanied by a large ship, the risk of two ship berthing at sea is also increased, especially when the weather changes, accompanied by wind and waves.Adopt pneumatic fender as side of the buffer, not only make heavy berthing becomes easy, and improve the efficiency of the transportation operations. Pneumatic fender is mainly used for: Ice in the Antarctic ocean fishing ships, large oil tanker berthing.
2. Used for terminal dock protection
Of the ship is very large, the cause of berthing impact energy have multiplied.Inflatable rubber fender because of its high energy absorption and low reaction force features are widely used.
Specification:
|
Diameter(m) |
Length(m) |
Internal pressure (Kpa) |
Energy Absorption(KNM) |
Reaction Force(KN) |
|
0.5 |
1.0 |
50 |
6 |
64 |
|
0.7 |
1.5 |
50 |
17 |
137 |
|
1.0 |
1.5 |
50 |
32 |
182 |
|
1.0 |
2.0 |
50 |
45 |
257 |
|
1.2 |
2.0 |
50 |
63 |
297 |
|
1.35 |
2.5 |
50 |
102 |
427 |
|
1.5 |
3.0 |
50 |
191 |
579 |
|
1.7 |
3.0 |
50 |
102 |
639 |
|
2.0 |
3.5 |
50 |
308 |
875 |
|
2.5 |
4.0 |
50 |
663 |
1381 |
|
2.5 |
5.5 |
50 |
943 |
2019 |
|
3.3 |
4.5 |
50 |
1175 |
1884 |
|
3.3 |
6.5 |
50 |
1814 |
3015 |
Pneumatic fender selection:
|
Vessel Tonnage |
Size (D*L) mm |
Recommend Vessel |
|
50 |
500*1000 |
Fishing Vessel |
|
100 |
700*1500~1000*1500 |
Fishing Vessel |
|
200 |
1000*1500~1200*2000 |
Fishing Vessel, Tugboat |
|
300-500 |
1200*2000~1500*2500 |
Fishing Vessel, Tugboat |
|
1000 |
1500*2500~1500*3000 |
Tugboat, Transport Ship |
|
3000 |
