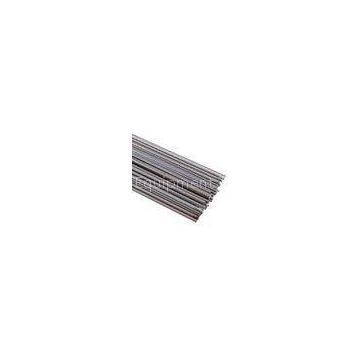

light weight AQ BQ NQ HQ PQ Custom Wireline Steel Drill Rod for concrete
Specifications:1. High Penetration Rate
2. Longer lifetime
3. Lower Using Cost
4. Excellent cemented carbide
5. AW, BW, NW, HW, PW, BWL, HWL, NWL, PWL
6. High Cost-effective
.
Description:
Our wireline drill rods are all manufactured by CNC machines under DCDMA standard. They\'re made of
high quality alloy steel with heat-treated. We also can produce various sizes of casing tubes.
Drill pipes will be manufactured from seamless steel tube by cold drawn.
The material is XJY850 / 30CrMnSiA which is one of the best material for geological drilling in China.
Coring rods are crafted from quality heat treated materials ensuring superior wear resistance, strength,
and toughness in the most demanding applications.
Rods and casing are manufactured under stringent industry standards, and are field tested under a variety
of conditions.
All rods are designed to be compatible with other rods manufactured to DCDMA standards.
Features:
TUBING
• High quality alloy steel tubing
• Consistent concentricity, straightness and heat treatment
• All tubing available in DCDMA sizes
THREAD
• Tapered, course threads (3 threads per inch) provides easy make and break
• Load efficiency of 30% provides sufficient strength for average applications
THRU-WALL HEAT TREATMENT
• Provides 140% material strength
• Heat treated box threads significantly increases thread wear life
Made-to-order products can be supplied according to your detailed need.
1, light weight (lighter than the old-fashioned drill pipe 45%)
2, footage soon, dust small vertical holes left after drilling cuttings, into a hole clear.
3, card beans quickly and easily connect and save banding material.
4, under separation of body and drilling may be the end, the use of life extended.
5, water-based wet good pass operation.
6. Application: concrete, granite, marble, refractory material...
7. fast delivery
Size Available:
\"Q\" Series: BQ, NQ, HQ, and PQ.
\"WJ\" Design: AWJ, BWJ, NWJ, KWJ, HWJ
\"W\" Design: RW, EW, AW, BW, NW, HW
Metric Series: 33, 42, 50
We also can produce various sizes of casing tubes
Size Available:
\"W\" Design: RW,EW,AW,BW,NW,HW,PW,SW,UW,ZW/HWT,PWT
Metric Series: 46, 56,66,76,86,101,116,131,146
\"X\" Design: RX, EX, AX, BX, NX, HX, PX, SX, UX, ZX
All Chinese sizes.
|
Item |
OD(mm) |
ID(mm) |
Wall Thickness(mm) |
Length(m) |
|
NQ Rod |
69.9 |
60.3 |
5 |
3 |
|
HQ Rod |
88.9 |
77.8 |
5.5 |
3 |
|
PQ Rod |
114.3 |
103.2 |
5.5 |
3 |
|
50 Rod |
50 |
37 |
6.5 |
3 |
