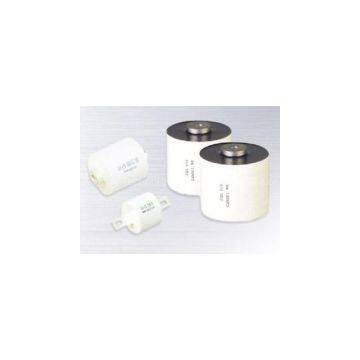

Coupling Capacitors Series

Features

Metallized film, UL94V-0 resin end filled, dry construction, non-inductive type.

High-frequency, high voltage, high current, long useful life.

Withstand heavy current.

High contact reliability and good self-healing.

Low equivalent series resistance (ESR), low equivalent series inductance (ESL).

Coating: polyester tape wrapping (Axial).

Terminals: Tinned copper lugs or copper bolt nuts.

Applications

Widely used in induction heating, electroplating power supply, inverter welder, inverter power supply and other electronic equipment for high current’s DC-blocking and resonant circuits.

Electrical Characteristics

REFERENCE STANDARD: IEC 61071

OPERATING TEMPERATURE: -40℃ - +85℃

CAPACITANCE RANGE: 0.5uF - 12uF

CAPACITANCE TOLERANCE: ±5%(J), ±10%(K)

VOLTAGE RANGE: 400VAC - 700VAC

DISSIPATION FACTOR: 0.1% max. at 1KHz, 25℃

DIELECTRIC STRENGTH: Between Terminals: 150% of rated voltage for 10 sec. at 25℃

　　　　　　　　　　　     Between Terminals to case: 3,000V 50Hz for 2 sec.

INSULATION RESISTANCE: 5,000MOhm*uF/C min (25℃, 1min)

SHOCK CURRENT CAPABILITY: du/dt: 410 - 1190V/μs

EFFECTIVE CURRENT: 96A max.

Notes

Customization for special specification and requirement is available.

Request Datasheet: Please contact with info@kowarytech.com directly.
