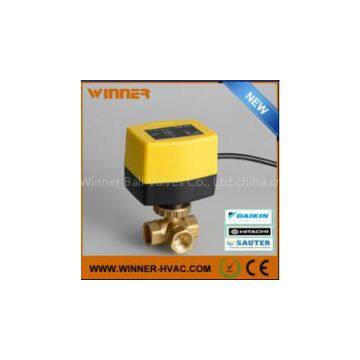

AC Motorized Control Ball Valves

Description

Winner motorized ball valve consists of on/off type or 3-point type actuator and W8BV… series ball valve，which have compact structure，stable operation，excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipments.

Application

HVAC system.

heating system.

Water treatment system,.

Industrial equipments

Technical data

Valve body:

Medium: cold/hot water, with 50% glycol                Temperature of medium: 2°C...90°C

Rated pressure: PN20                                             Pipe connector: internal thread

Ambient temp. range: -20…+70°C；0…95%RH        Size: 1/2’’, 3/4’’ and 1’’ Valve type: 2-way and 3-way

Material

Valve body: forged brass, Hpb59-1                        Seal: ball: EPDM+PTFE, with double O-ring

Ball: nickle-plated brass                                          stem: EPDM O-rings， with double O-ring

Actuator shell: PC+10GF                                         Actuator revolving shaft: POM
