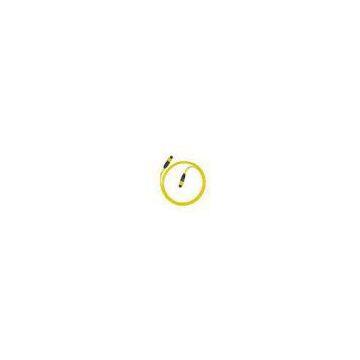

High fiber density, high reflection loss with APC MTP / MPO Fiber Optic Patch Cord
MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.
Features
Single mode and multi mode (flat) APC(catercorner 8 degree angled)available
High fiber density (maximum 24 fibers for Multimode)
Fiber in single connector: 4, 8, 12 24
Insert/Pull latching connector
High reflection loss with APC
Comply with Telcordia GR-1435-CORE specification and Rosh standard
Application:
Specifications
|
Item |
Single mode |
Multi mode |
|
Fiber diameter |
9/125 um |
62.5/125um 50/125um |
|
Insertion loss |
PC＜0.5dB APC＜0.4dB |
PC＜0.4dB |
|
Return loss |
PC＞45 dB APC＞55dB |
PC＞25dB |
|
Insert-pull test |
1000 times＜0.5 dB |
|
|
Interchange |
＜0.5 dB |
|
|
Operating temperature |
-40℃~ +80℃ |
|
|
Anti-tensile force |
15kgf |
Ordering Information
MPO/ PC–MPO/ PC-SM-12CORE–2M
① ② ① ② ③ ④ ⑤
①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
②Ferrule End-face: PC, UPC, APC
③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④Fiber Quantity: 4 core, 8 core, 12 core, 24 core
⑤Cable Length: 1, 2, 3 meter or customized
⑥ Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
