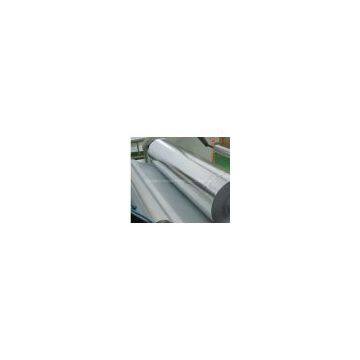

Bubble Foil Insulation Material

physicial property
Appearance
Pure Aluminum Foil lamitated with Bubble Film or EPE foam

 Thickness  3- 10mm (Customized )
 E-Value    0.03
 Weight     130g/m2 (Customized )
 Length     40m (Customized )
 Width      1.2m (Customized )
 Area       48m2 (Customized )
 Weight    6.24kg(Customized )
 Temperature         -50℃ to 80 ℃
 Original of Place   Taiyue in China

This Material consists of Single or double layers Aluminium foil (high density ,high reflective) and single or double bubble films (Low Heat conduction and convection) , which is the best Building heat insulation material for roof ,wall,Freezer, condition pipe .

2. Material :

◆Pure Aluminum Foil: High density 99.4% aluminum foil , lighter and shiner, can reflect 95-97%Heat Radiant , it is the best heat insulation material .

◆Polyester Film : Good Tensile ,water proof, anti-oxygen,insulation , oxidation resistance,High resistance .

◆PE Bubble film :water-proof , moister , no condensation,sound-proof,soft,easy to install .

3.Working Principle:

Warm in Winter and cool in summer

◆High Density 99.4% pure aluminium foil can reflective 97% radiant heat from the sun

◆uncontinuous and never flow air stay in the air bubble cell can slow down the heat conduction and block heat convection

◆ it will not be unaffected by humidity and ensure the best living condition both in extreme hot and cold climate .

4.Material Features:

◆Reflectivity: the rate can be 97%, it can not only reflect heat radiant , but also works well to Wave Radiation
◆Fire-proof : internal fire-proof or surface fire-proof ,can not burn –self , support burn , rate is Class A
◆ water-proof : absolutely no water absorption , be unaffected by Humidity and moister
◆convenience: be cut easily(knife) ,be fixed conviently (tape , staple )

◆Lightweight: Lighter and thinner ,will not become the burden of the construction,suit for both new and old building

◆lifetime : at least 10 years , no Mildewed ,no Wormy

◆Environmental : non-toxic,recycling ,reusable .
◆.Economical :save the air-condition cost in summer and winter

◆keep cool and Dry in Summer ,Keep warm and dry in Winter
