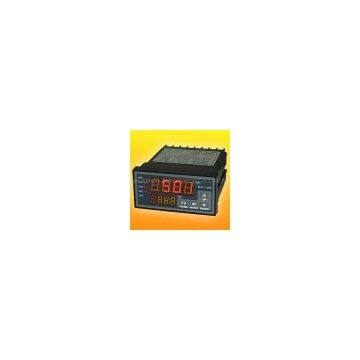

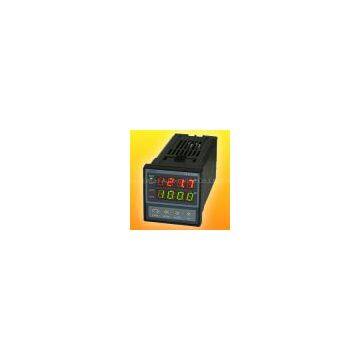

KH103T series PID Temperature controller: an intelligent PID controller with high accuracy measuring and data collection compatible. It has intelligent PID parameter self-turning function. With automatic shift function. It adopts Standard Modbus Communication protocol. We make a high performance-price ratio meter for customer. Welcome to purchase our meters.
Measuring: The PID controller can measure accurately and control physical parameters such as temperature, pressure, liquid level, gravity, instantaneous flow and etc.
Main technical specification
1) Accuracy: ±0.2%FS+1digit
2) Sampling period: ≤0.5s
3) Power voltage: 85-240VAC
4) T.C cold-junction compensation: Internal components or external CU50 compensation
5) Power consumption:<5W
6) T.C- off or over-range: display OPEN
7) Surface Mount Technology(SMT), its design is more concise and flexible
8) Input type:
T.C: K S E J T B N
Thermal resistance: PT100CU50CU100
Linear voltage: 0-5V1-5V
Linear current: 0-10mA4-20mA
Extensional specifications: customerized additional one input type
can be available based on aboved input type.
9) Output module specification
R1A: relay output (0.8A normal open)
R1B: relay output (0.8A normal close)
R1C: relay output (0.8A normal open and normal close)
R2A: relay output (3A normal open)
R2B: relay output (3A normal close)
R2C: relay output (3A normal open and normal close)
W1: contactless SCR output (100-240VAC/0.2A)
G: Solid- stated relay slaving voltage (DC12V/50mA output)
K1: single-route SCR over -zero trigger
U1/U2/U3: 5V/12V/24VDC isolated feed
C1/C3/C4: single-phase/ three-phase three-wire/ three-phase four-wire phase-shifter trigger
