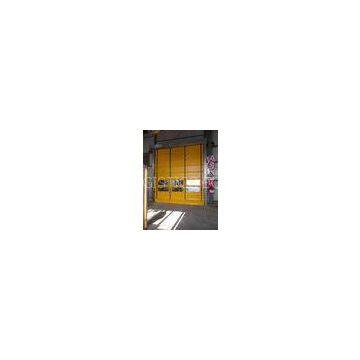

Lightweight Folding Shutter Door Fast 1.5mm PVC Rolling Shutter

Delivery Time:25 working days after received your payment
Certification:CE/ISO9001:2008

Lightweight Folding Shutter Door Fast 1.5mm PVC Rolling Shutter

Specifications:

Technical Parameter for speed door

Max Size:8000mm(W)*8000mm(H)

Opening Speed:0.8m/s

Closing Speed:0.6m/s

Wind load Max:28 m/s

Mechanical Unit

Frame:304 Stainless Steel/Aluminum

Thickness of frame:2.0mm Stainless Steel/Galvanized Steel

Thickness of shaft cover:1.5mm 304 Stainless Steel/Galvanized Steel

Motor cover:Yes

Frame Size:200mm*200mm

Control Unit

Control system:

S150 FU Micro-processor English Man-Machine Interface Self Trouble-Shooting Recognizing system Bigger LED Screen

Control Box Size:320 X 400 X 210 mm

Driving System

Feature:Absolutely Encoder

Driving Unit Brand:ABB Motor

Driving Unit Brand:Yaskawa Frequent Convert

Activation System

Open and Close the door:

Radar Induction Loop Remote Card Sensor Pull Cord Push Button Touching Panel for Cleaning Room Central-Computer Controlling

Safety System

Safe Equipment:

Beep Anti-wind Bar Traffic Light Wireless safety Edge Built-in Photo Cell Emergency Handle Shoulder Protection

Main feature:

H5000 high speed stack door is designed for exterior application with larger size in wind load areas. Over 500 timesvertical folding operations in a day will avoid the defect of traditional industrial doors. The stronger horizontal  wind-resistance bar ensures high performance of the door.It can be collected totally to save space and keep the surrounding clean.


Curtain Color	Grey, White,Blue,Yellow
Anti wind bar	anti wind-pipe at high density stacking
Power supply	AC 220V-240V, Single-Three Phrase, 50HZ
Temperature	-7 to 65 Celsius degree
Normal Working	-5 to 65 Celsius degree
Standard Motor Position	Left
Installation Base	Concrete,Panel, Brick,Steel Structure.
Installation Space	≥600mm above the door ≥600mm for motor side ≥200mm for non-motor side ≥800mm in front of the door
Using Area	For exterior doors with big size


Why choose us?

CE Certification: patent number--2012204951286;201220495059                                                                ISO  NO: 00913Q12336ROS Customized products for clients Designed for the long term, high frequent operating with reasonable price High quality and high performance. Pofessional researching and developing innovation on products.


About Suncome
Suncome leads the way in innovation in high performance products suitable to most productions environments.
The environments we have provided solutions to include:

FoodPharmaceutical Bio-technology Medical device manufacturing Cosmetics Refrigeration Precision manufacturers Chemical   Clean workshops Electronics Automotive

Suncome’s mission is to provide our customers with high performance, high quality and cost effective products.
Suncome with its head office in Shanghai has branches throughout China. Our highly qualified consultants are on hand
to provide full supply chain expertise. We can provide products to satisfy your requirements no matter where you are located.
