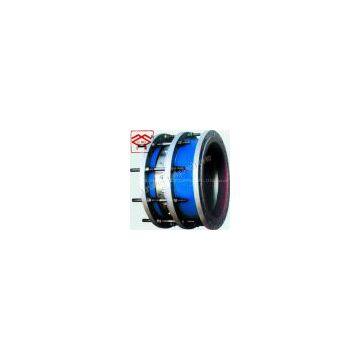

Two-End Flange Stop Expansion Joint (SSQP)

Structure Parts:
Body, Sealing, Follower, Nut, Bolt.

Product performance:
The product is manufactured through welding or metal casting, and the loosing part is sealed by echelon ring rubber. Operated by gland and bolt and based on the principle of rubber`s elastic deformation under pressure, the seal ring will be deformed and static seal will be done between joint body and expansion pipe wall. According to clients demand and product performance, metal and seal ring mate- rails will be selected strictly. High- strength antifouling paint is painted outside and the joint bolt is made of high- strength carbon steel or stainless steel, since there is some space between body and expansion, so axes and radial displacement will appear. Inside pipes, it becomes available to compensate and release pipe blind plate propulsion and makes it easy to maintain and change pump and valve. Therefore, it is an ideal matching product for pipes installation and operation.

Applicable Scope
The metal product is functioned with pull and pres-sure resistance and excellent seal performance and easy installation. Hence it is widely used in power, metallurgy, drainage and sewage disposal to connect pump, vale and pipe, etc. It also has some multi-directional displacement during pipes operation so as to release blind plate propulsion and protect pipes, especially it makes it easy to install and maintain pipes. However, force- transferring joints shall be used on the pipe corner and pump exit, because, the joints can transfer blind plate propulsion from pump start to pump and pipe through force- transferring bolt and prevent pull to centralize close to pipe or pipe or damage equipment by impact force. Other joints can be selected freely for other positions. Our tenet: Your trust is our honor and we will manufacture high- quality products for you.
We can design and make the products according to your drawings and techincal requirements. The quality is better and the price is lower than the similar products another company make.

Delivery time:
Within 30 days after receipt of the deposit

Packaging trem:
Unfumigation wooden case (Out package) and Plastic film and Textile membrane(inside package). We can make change as your request.

DN	Installation length	Min length	Max length	Hole central distance	Hole diameter/ hole quantity	Stop bolt
150	235	210	260	240	8-23	2-20
200	250	224	275	295	8-23	2-20
250	265	238	292	350	12-23	3-20
300	280	255	308	400	12-23	3-20
350	300	272	328	460	16-23	4-20
400	315	286	345	515	16-25	4-22
450	330	298	362	565	20-25	5-22
500	345	312	380	620	20-25	5-22
600	360	322	398	725	20-30	5-27
700	380	341	420	840	24-30	6-27
800	400	358	440	950	24-34	6-30
900	425	384	470	1050	28-34	7-30
1000	450	410	498	1160	28-34	7-30
1200	475	430	526	1380	32-41	8-36
1400	500	454	550	1590	36-48	9-42
1600	530	481	585	1820	40-54	10-48
1800	560	509	620	2020	44-54	11-48
2000	600	539	660	2230	46-54	12-48
2200	630	560	700	2390	52-48	13-48
2400	658	589	747	2600	56-48	14-48
2600	680	600	760	2810	60-54	15-48
2800	695	610	780	3020	64-54	16-48
3000	710	620	800	3220	68-54	17-48
