Home > Products > Isuzu Diesel Generator > 30kw /37.5kva Isuzu Diesel Generator Set 20kva - 60kva, 3 Phase 4 Lines V34SU

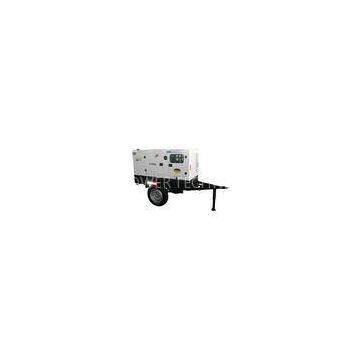

30kw /37.5kva Isuzu Diesel Generator Set 20kva - 60kva, 3 Phase 4 Lines V34SU
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
Product Details
| Brand Name: | VICTORY POWER RELIABILITY | Place of Origin: | China | Model Number: | ISUZU 20KVA~60KVA |
Product Description
Certification:CE, ISO, SONCAP
1.Frequency 60HZ, 1800RPM
2.Rating voltage 208V/120V,
3.30KW/37.5KVA, Prime Power
4.Model of Connection: 3 phase 4 lines
3 Phase 4 Lines, 20kva - 60kva, 30kw/37.5kva Isuzu Diesel Generator Set V34SU
| Standard Features: | ||||
| Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V | ||||
| Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V | ||||
| Power Factor 0.8(lagging) | ||||
| Protection Standard: IP21-IP23 | ||||
| Model of Connection: 3 phase 4 lines | ||||
| Insulation Grade: H | ||||
| Frequency Drop(%): ≤ 0.5 | ||||
| Transient state frequency deviation(%):(advertised power ) +10～-7 | ||||
| Frequency Recovery Time(S): ≤ 3 | ||||
| Voltage Recovery Time(S): ≤4 | ||||
| Waveform Distortion(%): ≤5 | ||||
| Voltage Regulation: +_1.0% |
Descriptions:
Victory Isuzu series diesel generator adopts with Isuzu brand engine made by China Foton Company, whose 4JB serie is developed in cooperation with Austria AVL company on the base of ISUZU engine. It is optimized in fueling can cooling system according to the charactor of diesel genset. It is small-sized and compact with high adaptability and reliability and is an ideal genset in the 20kW to 40kW serie gensets.
SPECIFICATIONS:
| GENSET MODEL | V24SU | V26SU | V37SU | V26SU | V34SU | V45SU |
| Prime Power |
20KW /25KVA |
24KW /30KVA |
33KW /41KVA |
24KW /30KVA |
30KW /37.5KVA |
40KW /50KVA |
| Standby Power |
24KW /30KVA |
26KW /33KVA |
37KW /46KVA |
26KW/ 33KVA |
34KW /42.5KVA |
45KW /56KVA |
| DIESEL ENGINE MODEL | 4JB1 | 4JB1T | 4JB1TT | 4JB1 | 4JB1T | 4JB1TT |
| 1500RPM, 50Hz | 1800RPM, 60Hz | |||||
| Engine Prime Output(KW) | 24 | 28 | 36 | 28 | 34 | 43 |
| Aspiration | Natural |
Turbo charged |
Turbo charged |
Natural |
Turbo charged |
Turbo charged |
| Bore(mm)XStroke(mm) | 93X102 | |||||
|
Cubic Capacity (L) |
2.771 | |||||
| Piston Speed (m/s) | 5.1 m/s | |||||
| Compression Ratio | 18.2:1 | |||||
|
Speed Stability Bandwidth |
≤±0 |
