Outside High Definition NVR Video Surveillance Systems , Wireless NVR Kit
- T/T L/C D/P D/A
- 7 days
You May Like
-
Remote View Waterproof Camera POE NVR System , HD IP NVR Security System
-
Wide Dynamic Range POE IP Camera Weatherproof 2.8-12mm Manual Zoom Lens
-
42pcs Plug And Play Home Security Cameras Night Vision Wide Dynamic Range
-
Motion Detection H.264 POE NVR System High Resolution Support Smart Phone / Tablet
-
4 Channel Poe NVR Security System With Four 960P Dome Outdoor Camera
-
Ambarella A5S66 Chipset 1080P Security Camera System POE Plug And Play
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS

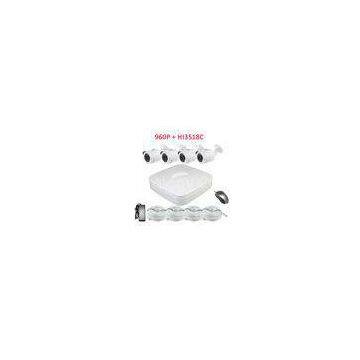

Outside High Definition NVR Video Surveillance Systems , Wireless NVR Kit
This POE NVR Kit is widely used for home,shop,offices,factory,small projects.
Camera Features:
- 1/3\" SONY Low Illumination 1.4MP CMOS Sensor
- HISILICON Hi3518C;
- 2MP HD Lens, With IR-CUT
- Main Stream: 960P/720P@30fps
- 24 Pieces IR Led,Night Vision up to 20M | WDR | 3D NR
NVR Features:
- IP Camera Input: 4CH (1920×1080, 1280×960, 1280×720, etc)
- Video Output: 1CH VGA Output, 1CH HDMI Output
- Compression Method: H.264
- Recording Resolution: 4CH*1080P/4CH×960P/4CH×720P, etc (All Real Time)
- Preview Resolution: 4CHxD1 /1CHx1080P
- Playback Resolution: 1CHx1080P
- Hexaplex Operation Simultaneously: Preview, Recording, Playback, Live, Backup
- 1 RJ-45 Ethernet Connector, Static IP , P2P, Support IE and Special CMS
- 1 SATA Hard Disk Interface (2.5\"/3.5\" SATA, Up to 4TB), Backup: 2xUSB2.0
- Support Remote View by Smart Phone, With POE
Camera Specifications:
| Model NO. | CSBH24S130 |
| Camera | |
| Image Sensor | IMX238 |
| Main processor | HI3518C |
| Resolution | 960P |
| Effective Pixels | 1280(H)*960(V) |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec |
| Sync System | Internal |
| Usable Illumination | 0.01Lux |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network |
| Lens | |
| Focus Length | Board Lens 3.6mm/F2.0 |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 2M Pixels |
| Night Vision | |
| Infrared LED | ￠5X24PCS |
| Infrared Distance | 20M |
| IR Status | Under 10 Lux By CDS |
| IR Power On | CDS Auto Control |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, SMTP, DNS, DDNS |
| ONVIF | Support ONVIF 2.4 |
| P2P | YES, Support QR Code |
| POE | Support IEEE 802.3af |
| WIFI | N/A |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream | 1280*960@30fps |
| Sub Stream | 704*576@30fps, |
| 352*288@30fps | |
| IE Brower | IE6-11, Google Chrome(IE Tab), Firefox(IE Tab) |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Compression | H.264/JPEG,Support record AVI format. |
| Image Config |
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control) |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| WDR | Yes |
| Recording Mode | NVR/NAS/CMS/Web |
| Language |
Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian |
| Housing | Weatherproof , IP66 |
| Lens Angle Adjustment | YES, 3-Axis |
| IR Cut Filter | YES |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source |
