Home > Lights & Lighting > Bulb & Lamp > Xenon Light > Full Color LED Video Wall High Resolution / Hanging IP65 LED Moving Message Sign

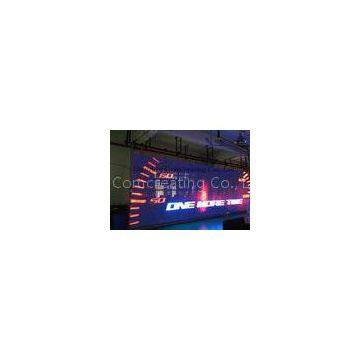

Full Color LED Video Wall High Resolution / Hanging IP65 LED Moving Message Sign

Name: Full Color LED Video Wall High Resolution / Hanging IP65 LED Moving Message Sign
Brand: NFCase
SKU: 150957050
Availability: InStock

Full Color LED Video Wall High Resolution / Hanging IP65 LED Moving Message Sign thumbnail-1

Full Color LED Video Wall High Resolution / Hanging IP65 LED Moving Message Sign photo-1

US$ 4 - 5 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

NFCase

Place of Origin:

China

Model Number:

AIA-1

Contact Supplier Request Quote Chat Now

Shenzhen Comcreating Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name NFCase

Place of Origin China

Model Number AIA-1

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

Full color LED video wall high resolution / hanging IP65 LED moving message sign

Specifications:

Items	Outdoor P25.6mm	Outdoor P16mm	Indoor P12.5mm
Pixel Configuration	1R1G1B DIP346	1R1G1B DIP346	1R1G1B SMD 3528
Pixel Pitch	25.6mm	16mm	12.5mm
Pixel Density	1,526	3,906	6,400
Module Size(mm)	512x128	200x400
Pixels/Module	20x5	32x8	16x32
Cabinet Size(mm)(WxHxT)	1024x1024x110	400x 800 x 55
Pixels/Cabinet	40x40	64x64	32x64
Cabinet Weight	38KG	38KG	4.8KG
Brightness	5000cd/㎡	5000cd/㎡	1300cd/㎡
Viewing Distance	>26m	>16m	>13m
Power Consumption (W/㎡)	Max: 500 Ave: 150	Max: 500 Ave: 150	Max: 300 Ave: 100
Driver Mode	Static Latching	Static Latching	1/8 scan
Operating Temperature	-20℃ ~ +50℃	-20℃ ~ +50℃	-20℃ ~ +40℃
IP Rating	Front IP65	Front IP65	IP20
Cabinet Material	Cold Rolled Steel	Cold Rolled Steel	Aluminum
Viewing Angle	H: 110°; V: 60°	H: 110°; V: 60°	H: 120°; V: 120°
Usage	Fixed installation
Refresh Rate	300HZ-3000HZ adjustable
LED Life	100,000 hours
Supply Voltage	AC220V/50HZ; AC110V/60HZ
Operating Humidity	10% - 90%
Gray Scale	Red, Green and Blue each 16K
Display Color	4096 Billion

Description:

1. Transparent design, low wind resistance.

2. Good heat dissipation, no fan no noise design.

3. Modular design, tidy and beautiful cabinet, easy for maintenance.

4. Ultra thin and light, powerful lock, and hanging design make it easy to assemble and disassemble.

5. High refresh rate, seamless splice, HD video with vivid picture.

6. At least 72hours aging test before out of factory.

7. Warranty
Comcreating offers two years warranty. Repairing and replacement during the guaranteed period will be free, but you should bear the freight cost from your place to our factory. However, we can not guarantee on a workshop for replacement, compensation for damage, and repairing charge taking place within the following situations:
1. Accident due to careless handling and misusage.
2. Accident due to repair or improvement without permission of Shenzhen Comcreating Co., Ltd.
3. Accident due to force majeure/nature disaster (fire, flood) and war.

8. Maintenance
Comcreating provides 1% spare parts freely, including LED module, power supply, fan, receiving card, LED lamps and other related parts. You can replace the brok
