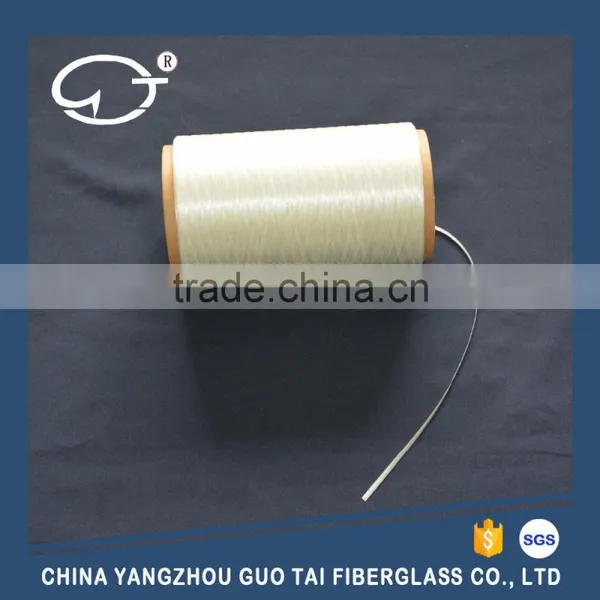

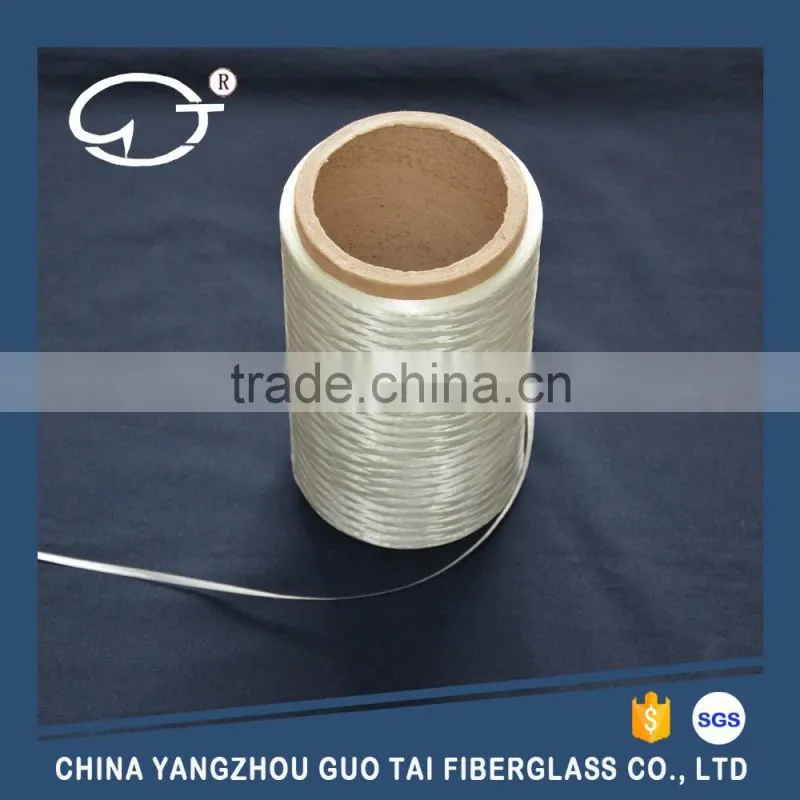

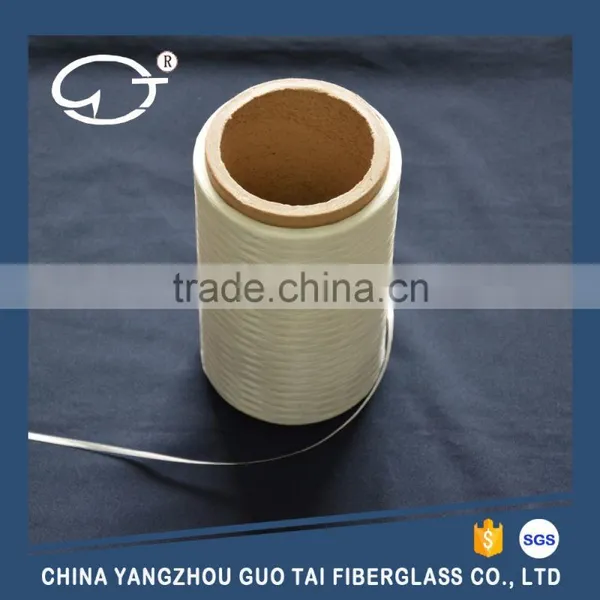

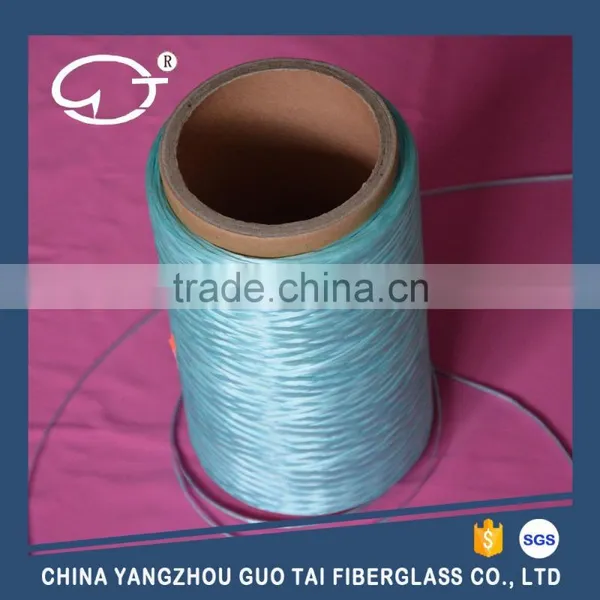

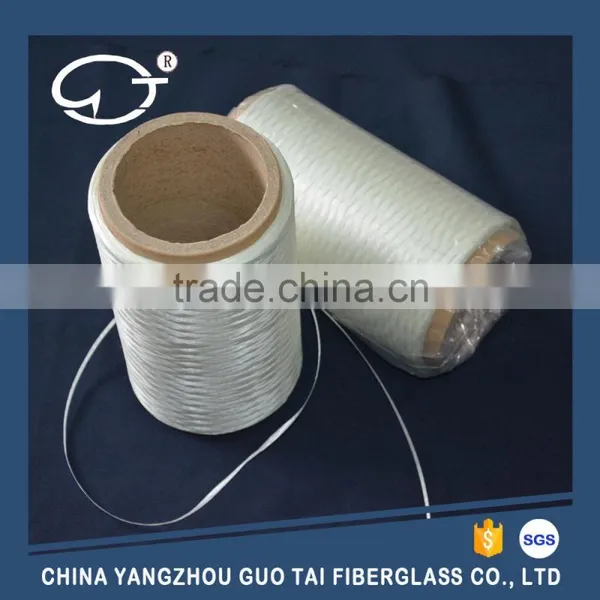

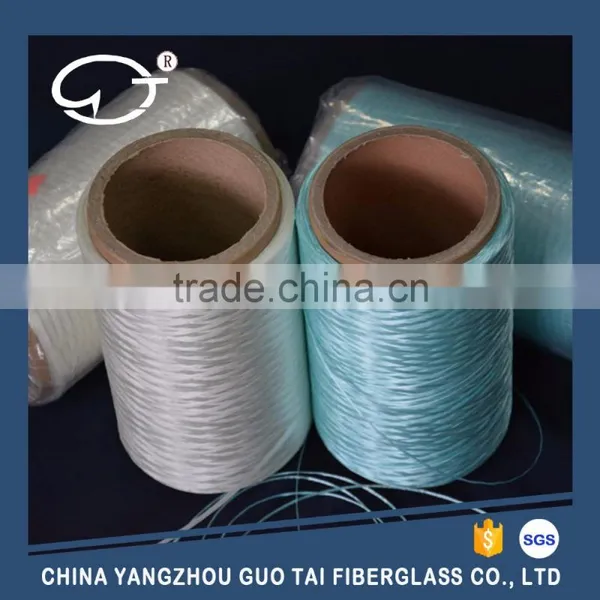

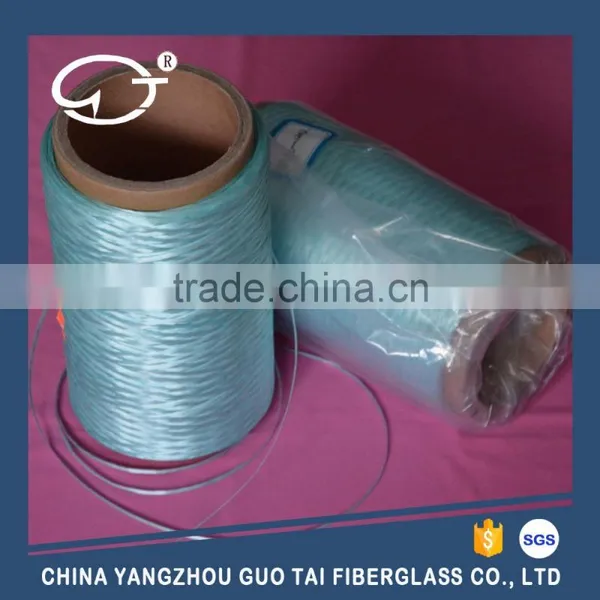

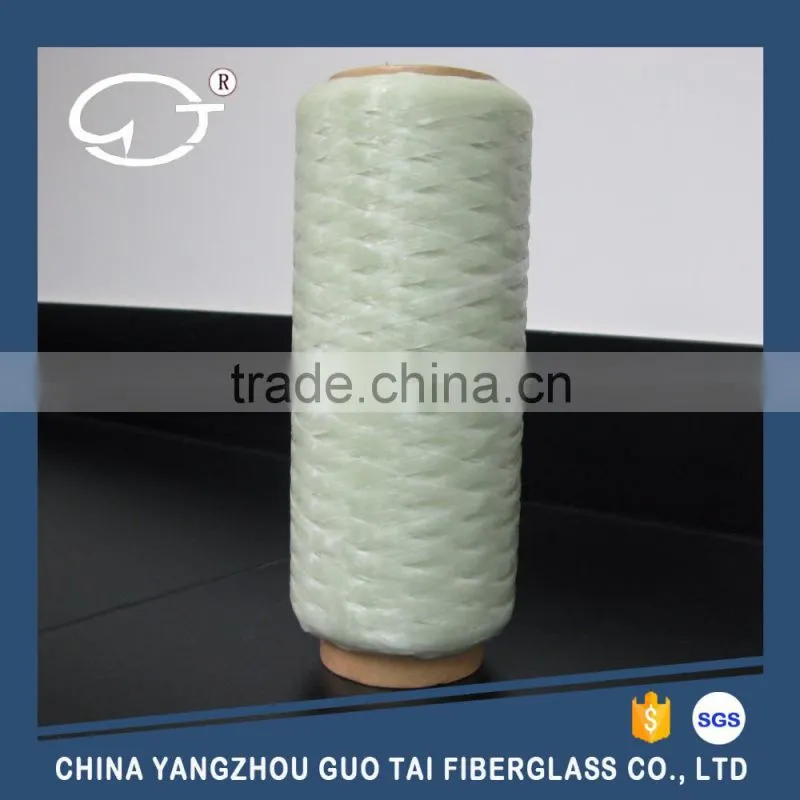

water swellable glass roving
It is manufactured using E-glass fibre with proprietary resin systems to produce an innovative, value added reinforcement solution with superior water swelling properties. It has a special smooth, super absorbant coating to resist water penetration into fiber optic cables, saving it from water damages. This product is manufactured using an advanced water blocking coating technology, eliminating loose fibers or
powder traces on the surface during cable production at very high speeds achieving excellent productivity and handling characteristics. It swells instantly on contact with water thereby sealing all the voids even in harsh & hostile environments and has a very high swell strength which is suitable to withstand higher water pressure important for highly sensitive optic fibers. It has a very high strength to weight ratio resulting in light weight cables with utmost ease of handling. It is available in long continuous
Product Application
It has as dual functionalities of very high strength & excellent water swellable characteristics. It is most suited for uni- tube, loose tube & slotted core cables & typically used as peripheral reinforcement in fibre optic cables along with FRP Rod & Semi-Rigid FRP Rods. It is introduced over the loose tube and the cable manufactured with it would be lower in diameter, lighter in weight with high degree of flexibility, excellent tensile strength & modulus performance along with protection against water damage. This product is a cost effective alternative to gels, greases & tapes, especially where dry cable is desirable.
| Parameters | Serial No. | ||
| 1 | 2 | 3 | |
| Linear Density(g/km) | 1000±100 | 2000±200 | 3000±300 |
| Tensile Strength (N/cm) | ≥200 | ≥150 | ≥110 |
| Elongation At Break (%) | ≥15 | ≥15 | ≥15 |
| Expansion Speed (ml/g/min) | ≥60 | ≥55 | ≥50 |
| Expansion Rate (ml/g) | ≥65 | ≥65 | ≥50 |
| Short-time Stability (ºC) | 228 | 228 | 228 |
| Long-time Stability (ºC) | 150 | 150 | 150 |
| Moisture Content (%) | <9 | <9 | <9 |
Product Pictures
