Heat Insulation Ceramic Fiber Plate

China Yangzhou Guo Tai Fiberglass Co., Ltd.
5Yrs
Heat Insulation Ceramic Fiber Plate thumbnail-1
Heat Insulation Ceramic Fiber Plate thumbnail-2
Heat Insulation Ceramic Fiber Plate photo-1
Heat Insulation Ceramic Fiber Plate photo-2
US$ 0.9 - 6 MOQ: 100 Kilograms
Key Specifications
Get Latest Price
Application:
Heat Insulation
Thickness:
20-150mm
Width:
300/600/1000mm
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Heat Insulation
Thickness 20-150mm
Width 300/600/1000mm
Length 600/900/1000/1200mm
Grade ST (Standard)
Chemical Composition AL2O3+SIO2
Working Temperature 1000-1400
Fiber Diameter 3-5um
Thermal Conductivity 0.085-0.18W/M.K
Shrinkage (1800℉, 3h) 3%(24h)
Place of Origin Jiangsu, China
Model Number GT Ceramic Fiber Board
Brand Name GT

Heat Insulation Ceramic Fiber plate

It is a plate by pressing bulk fiber and inorganic bond and then calcining and curing with high temperature. With the property of low density and high strength, the products are applying in high temperature liner, vehicle, and baffle of furnace door and disjunctive board of temperature.Density: 140~400kg/m3.Thickness:5~100mm.Size:400x600 500x800 800x1200(mm).We can supply in pieces and compound materials as per customers' requirements.

                                             Data    Sheet

Item1050 ceramic fiber plate1260 ceramic fiber plate
Shrinkage on Heating %950ºC x 24h ≤ -2.51000ºC x 24h ≤ -2
Thermal conductivity
W/m.k  		Hot surface 800ºC≤ 0.116Hot surface 1000ºC≤ 0.135
Compressive strength
Mpa		≥ 0.5≥ 0.6
Density ( kg/m3)220300
Specification (mm)1200x600x12.7x/25/50
PackageSingle package:carton box outside
Big package:wooden pallets
PackageSingle package:25mm:8pcs/ctn 50mm:4pcs/ctn
Big package:8 ctn/pallet
Quality control systemISO9001-2000, ISO14001-1996

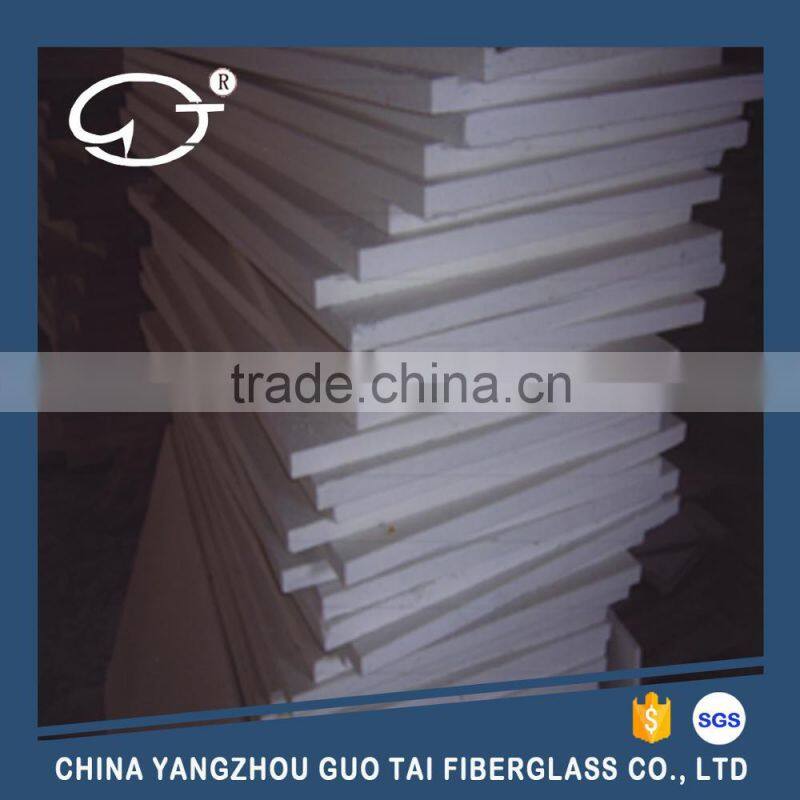

Product Pictures
