PE Battery Separator for Lead-acid Storage Battery

PE battery separator

    PE battery separater is the new type separator in Europe and USA.And it is made of special material like UHMWPE and Hydroted Silica by CNC production line.The products are PE slitted tape,PE composite separator,PE envelop separator.We can process it according to customers’ special request.Look forward to cooperate with you for long time!

Appearance list of PE separator

 A.    smooth surface on one side, mini rib on the other side

        sample: 10ribs/cm, 12ribs/cm

 B.     mini rib on both sides

        sample: 7, 8 or 12ribs/cm

 C.     smooth surface on one side, straight rib on the other side

         sample: rib distance is 4, 5, 7, 10 or 12mm

 D.    smooth surface on one side, twill rib on the other side

sample: rib distance is 5 or 7mm

 E.     mini rib on one side, staight rib on the other side

        sample: 6, 7, 9 or 12 mini ribs/cm

        rib distance is 4, 5, 7 or 12mm

 F.     mini rib on one side, twill rib on the other side

        sample: 4, 6, 7 or 12 mini ribs/cm

        rib distance is 7, 8, 10 or 12mm

 G.   straight rib on one side, twill rib on the other side

       sample: rib distance is 5mm

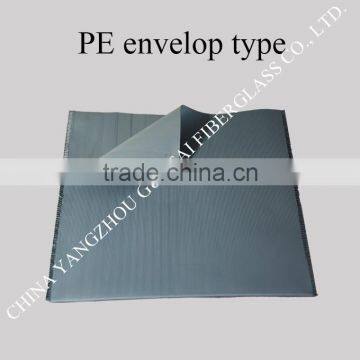

H.   PE envelop separator

    It is made by PE slice separator under heat pressing technic. It can be pasted with GM 0.3, 0.4, 0.5 or 0.6mm inner or outer. Picture A shows PE envelop separator with glass mat inner and Picture B shows PE envelop separator with glass mat outer.

product pictures:

                    Export refined packaging in Cartons.

    We are located in Yangzhou,a famous historic city in china,with only one hour from Shanghai high-speed railway station.In the past 15 years,we supply fiberglass,basalt fiber and carbon fiber product to more than 42 countries and make cooperation with them for long time.

    From 2002,we are engaged in battery separator series.From raw material like water-dispersed chopped strands and micro fiber,then deal with AGM fiberglass separator,AGM micro fiber separator,fiberglass composite separator,PP separator,PVC separator,PE separator,PE separator and some basic material like UHMWPE,SP1125,and lignin and so on.

The reason you choose us:

1. We are one of the best suppliers of glass fiber in china.

2.We are engaged in battery separator series:  raw material like water-dispersed chopped strands and micro fiber,AGM fiberglass separator,AGM micro fiber separator,fiberglass composite separator,PP separator,PVC separator,PE separator,PE separator and some basic material like UHMWPE,SP1125,and lignin and so on.

3.We ensure the deliver time,high quality,and the best after-sale service for you.

4.Any problems,no matter big or amall,we will do our best to solve it with you,make you satisfied.

    We hope to make cooperation with you for long time !
