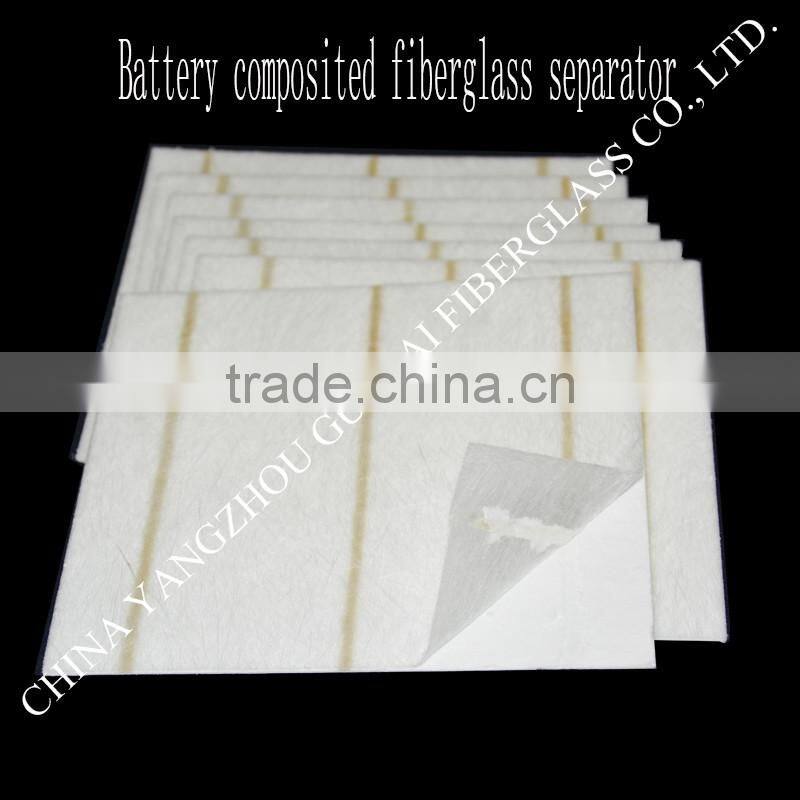

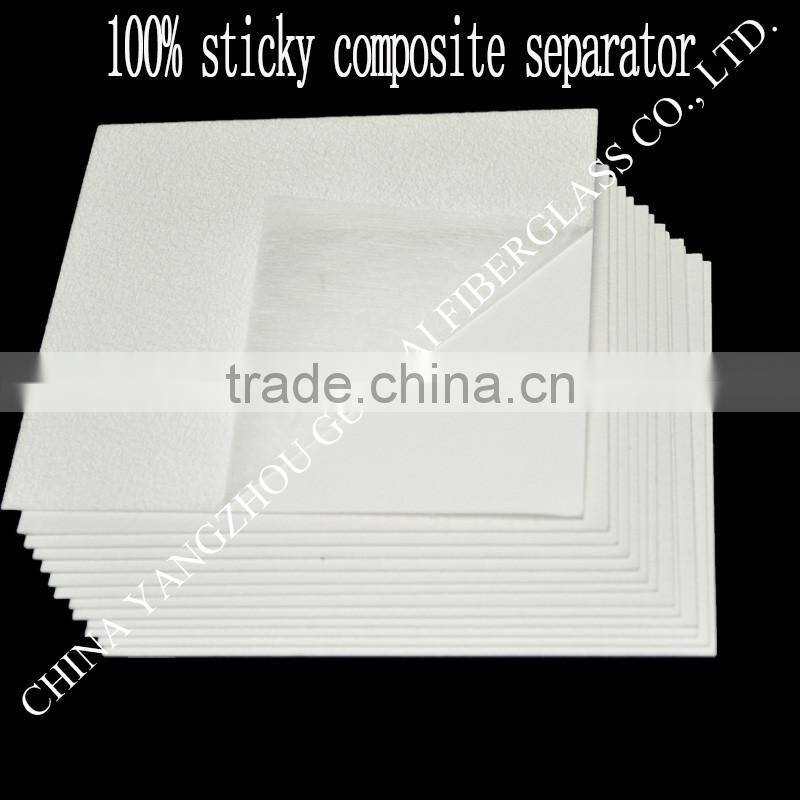

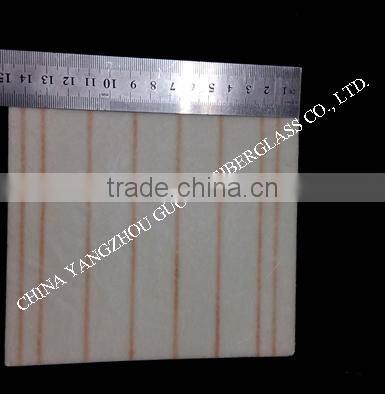

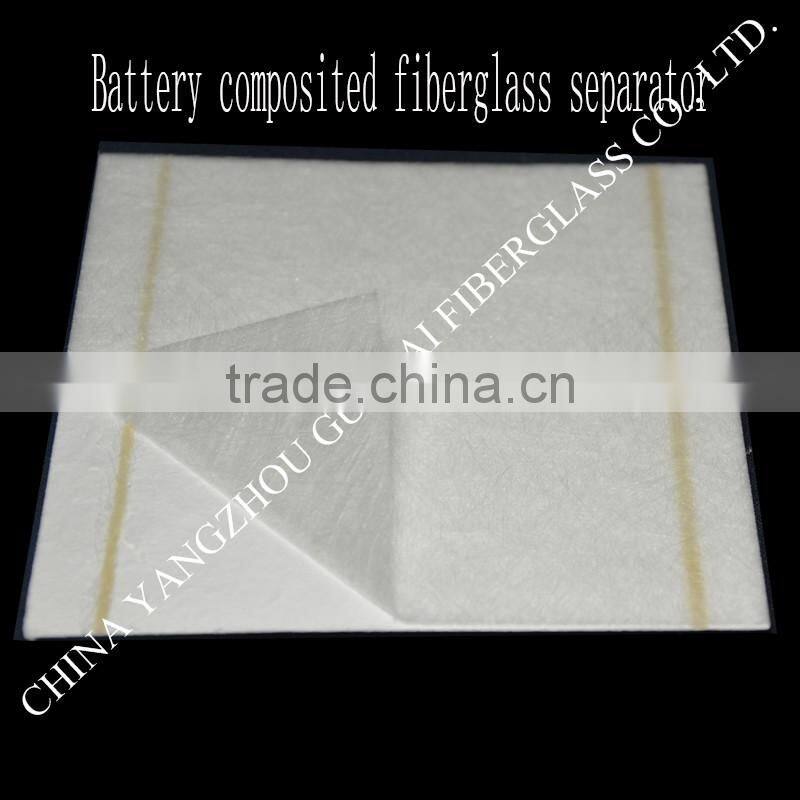

sticky composite fiberglass battery separator
- 3000000 Piece / Pieces per Month
- shanghai
- T/T
- PE envelop separator for lead-acid battery
- PE envelop separator with glass mat inner
- PE battery separator with mini rib on one side and straight rib on the other side
- PE battery separator with smooth surface on one side and twill rib on the other side
- PE envelop battery separator with glass mat outer/inner
- high quality low price li-ion battery separator
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | guotai | Model Number: | fiberglass composite separator |
Application: | lead-acid battery separator | Surface Treatment: | Surface smooth | Technique: | Composite |
Dimensions: | customized |
Product Description
AGM separator with glass mat (Chinese Standard)
According to Chinese Standard, it is a laminated composite separator composed of AGM thin mat by wet processing as base material, and laminated with micro fiber paper with glue. The product has the characteristics of low resistance, high porosity, small aperture, non-organic impurities and good oxidation resistance, and can prevent the active substance detached from vibration and damping effect, which can effectively extend the battery life and is suitable for all kinds of means of delivery.The available thickness is 1~2mm. The size can be as per customers’ request.
Property
No. | Item | Unit | Result | Standard |
1 | Electric Resistance | Ω.dm2 | 0.0004 | ≤0.0010 |
2 | Tensile Strength | MPa | 4.5 | ≥3.0 |
3 | Dry breakdown | g | 900 | ≥450 |
4 | Corrosion Breakdown | g | 900 | ≥400 |
5 | Wettability | s | 3.5 | ≤4.0 |
6 | Max. pore size | um | 21 | ≤23 |
7 | Pore rate | % | 91.7 | ≥80 |
8 | Water content | % | 0.81 | ≤1.0 |
9 | Loss weight after dipping acid | % | 3.4 | ≤4.0 |
10 | Anti-layering |
| No | No |
11 | Fe content | % | 0.0036 | ≤0.008 |
12 | Cl content | % | 0.0018 | ≤0.003 |
13 | KmnO4 deoxidize content | Ml/g | 8.2 | ≤15 |
14 | Foaminess |
| passed | The foam doesn’t cover the sulfuric acid solution totally. |
AGM separator with glass mat (American Standard)

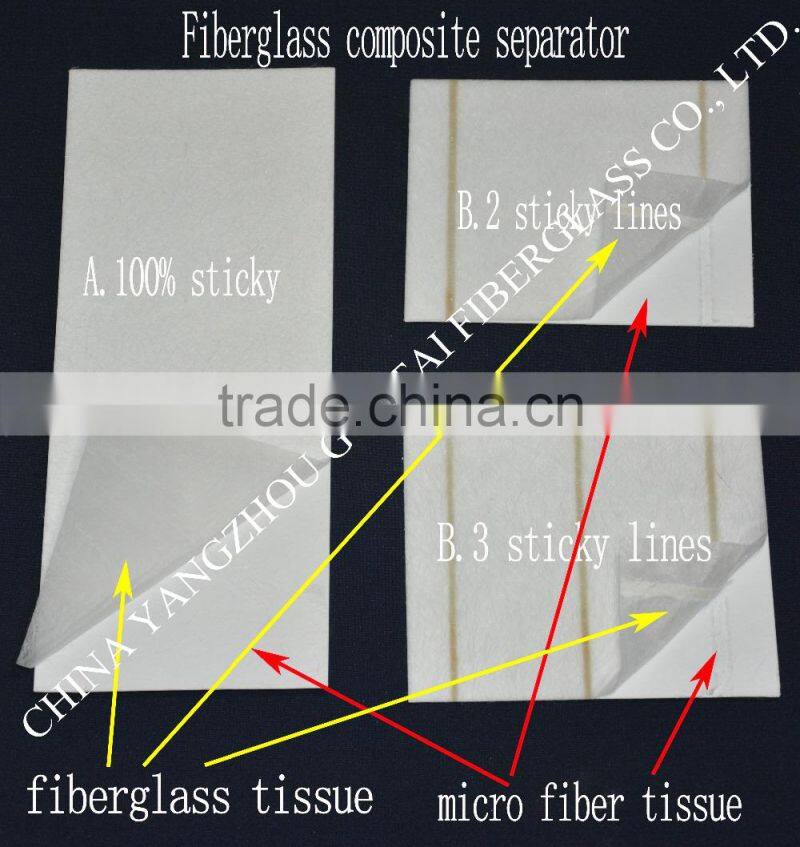

According to American Standard, it is compunded by AGM paper and glass mat, with two sticky lines. The compounding separator intergrate the advantages of the two kinds of mats, which is of high pore rate,low electric resistance good heat resistance and antioxidation. It is adapted to starter type Lead acid battery. The battery with the compunding separator is with very good shockproof performance, and avoid the plate’s active material fall off from car shaking, so that longer the lifetime of the battery.
The available thickness is 1.4mm and 1.6mm. The size can be as per customers’ request.
Property
No. | Item | Unit | Result | Standard |
1 | Electric Resistance | Ω.dm2 | 0.00015 | ≤0.0010 |
2 | Tensile Strength | MPa | 4.5 | ≥3.0 |
3 | Dry breakdown | g | 900 | ≥450 |
4 | Corrosion Breakdown | g | 900 | ≥400 |
5 | Wettability | s | 3.5 | ≤4.0 |
6 | Max. pore size | um | 23 | ≤25 |
7 | Pore rate | % | 88.7 | ≥85 |
8 | Water content | % | 0.5 | ≤1.0 |
9 | Loss weight after dipping acid | % | 3.2 | ≤4.0 |
10 | Anti-layering |
| No | No |
11 | Fe content | % | 0.0036 | ≤0.008 |
12 | Cl content | % | 0.0011 | ≤0.003 |
13 | KmnO4 deoxidize content | Ml/g | 8.2 | ≤15 |
14 | Foaminess |
| passed | The foam doesn’t cover the sulfuric acid solution totally. |

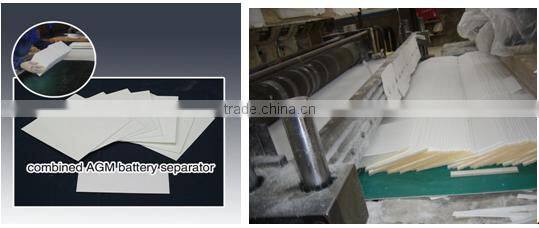

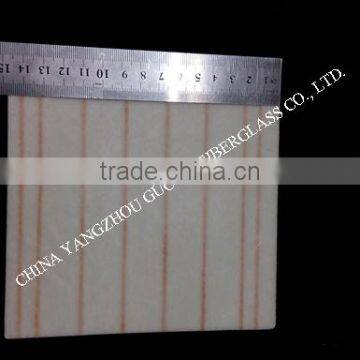

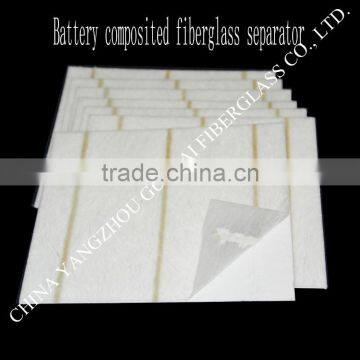

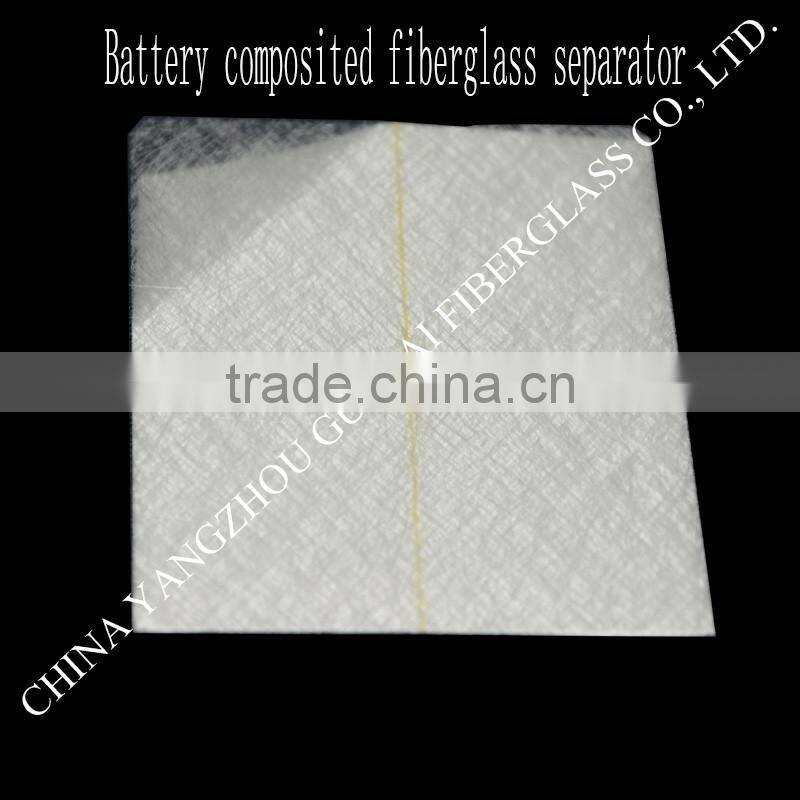

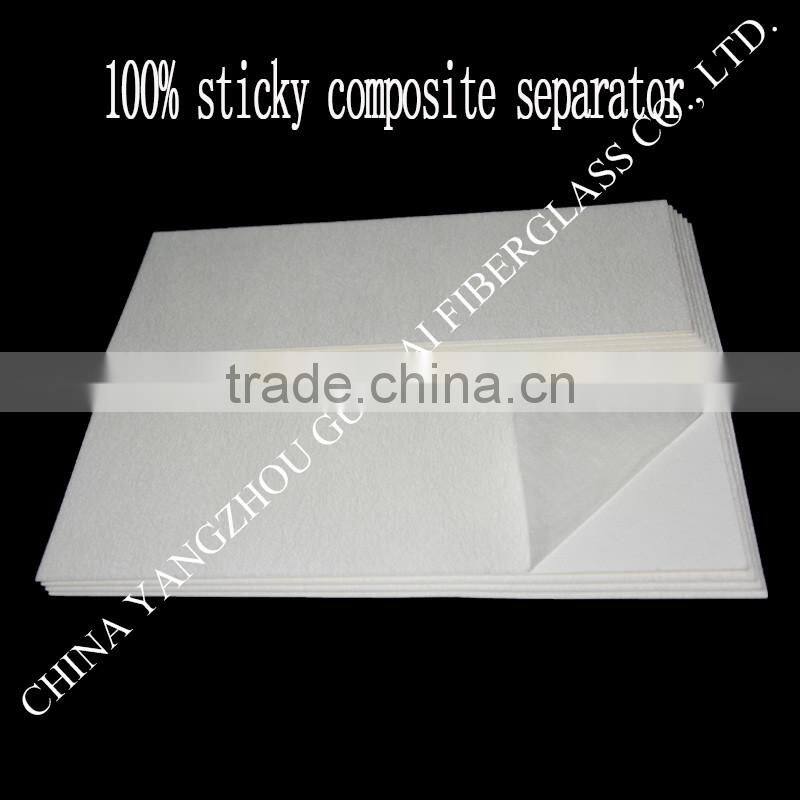

Product pictures:

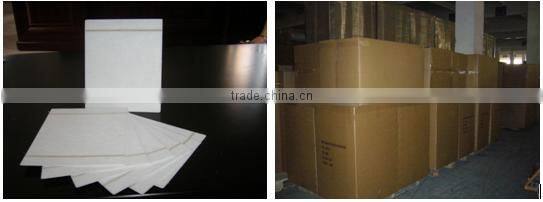

- Packing: Plastic bag or carton for customer's choice
- Port of Shipping: Shanghai
We are located in Yangzhou,a famous historic city in china,with only one hour from Shanghai high-speed railway station.In the past 15 years,we supply fiberglass,basalt fiber and carbon fiber product to more than 42 countries and make cooperation with them for long time.
From 2002,we are engaged in battery separator series.From raw material like water-dispersed chopped strands and micro fiber,then deal with AGM fiberglass separator,AGM micro fiber separator,fiberglass composite separator,PP separator,PVC separator,PE separator,PE separator and some basic material like UHMWPE,SP1125,and lignin and so on.
The reason you choose us:
1. We are one of the best suppliers of glass fiber in china.
2.We are engaged in battery separator series: raw material like water-dispersed chopped strands and micro fiber,AGM fiberglass separator,AGM micro fiber separator,fiberglass composite separator,PP separator,PVC separator,PE separator,PE separator and some basic material like UHMWPE,SP1125,and lignin and so on.
3.We ensure the deliver time,high quality,and the best after-sale service for you.
4.Any problems,no matter big or amall,we will do our best to solve it with you,make you satisfied.
We hope to make cooperation with you for long time !
