Specifications
1.Fiberglass Chopped Strand Mat2.E-glass or C-glass fiber
1. Product profile:
chopped strand mat is lamellar product made of fiberglass filament or roving yarn which cut short into 50mm and by the process of chemical gluing and mechanical operation.
2. Product application and requests:
Manual shaping: manual shaping process is the main method to produce glass-steel in our country; fiberglass chopped felt is used in manual shaping process, it could helps to decrease the frequency of spreading layer and increase the efficiency of manual working. Manual shaping process requests the felts have characteristics of high speed of soaking gum, easy erasing bladder and good capability of submerging mould.
Twisting process: usually it use chopped mat or sequence mat to twist into gum layer which mainly used to make into product, containing internal layer and external surface. The requests of twisting process to fiberglass are similar to that of manual shaping process.
Eccentric foundry shaping: generally use chopped mat as raw material. Firstly spread the chopped into the mould, then put the gum into the gyrating opening module, by eccentric to discharge bladder and make the product become denser. This process requests the felt has good capability of easy soaking and passing though air.
Generally, the chopped felt is used in manufacturing products with homogeneous section and medium intensity, such as ship body, car element, bathroom installation, radiator and furniture, etc.
Main sorts: 300g/ , 450g/ , 600g/ , 800g/ , etc.
Thickness: 100-150cm
Property | Glass type | Weight(g/m2) | Width 200~3300 | Roll Weight | Moisture Content% | Combustible Content% | Breakage Strength N |
Test Method | GB/T 1549 | ISO3374:2000 | ISO3374 | GB/T17470-1998 | ISO3344:1997 | ISO1887:1995 | ISO3342 |
EMC 80 | E/C-GLASS | 80±16 | ±5 | 6~95 | <0.2 | 13.6±0.35 | ≥200 |
EMC 100 | E/C-GLASS | 100±20 | ±5 | 6~95 | <0.2 | 9.5±0.35 | ≥170 |
EMC 150 | E/C-GLASS | 150±30 | ±5 | 6~95 | <0.2 | 8.0±0.35 | ≥40 |
EMC 225 | E/C-GLASS | 225±45 | ±5 | 6~95 | <0.2 | 5.0±0.35 | ≥60 |
EMC 300 | E/C-GLASS | 300±60 | ±5 | 6~95 | <0.2 | 4.0±0.35 | ≥90 |
EMC 450 | E/C-GLASS | 450±90 | ±5 | 6~95 | <0.2 | 3.8±0.35 | ≥120 |
EMC 600 | E/C-GLASS | 600±120 | ±5 | 6~95 | <0.2 | 3.6±0.35 | ≥150 |
EMC 900 | E/C-GLASS | 900±180 | ±5 | 6~95 | <0.2 | 3.4±0.35 | ≥180 |

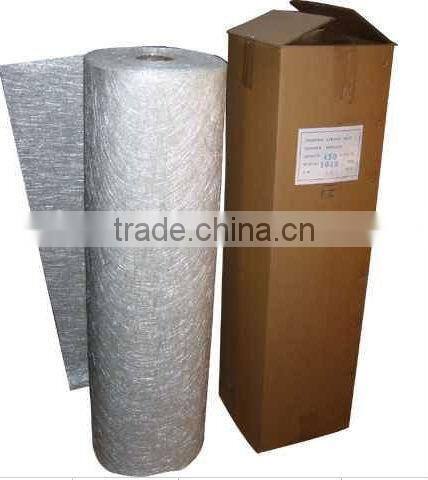

Package:
Product is manufacture in form of a roll wrap on a paper tube then after packed in a plastic bag and placed with in a cardboard carton. Rolls can be loaded in a container directly or on pallets.
Quantity(Chopped Strand Mat):
20' GP Container: About 10000kgs
40' HC Container: About 23100kgs
Deposited:
Chopped Strand Mat should be stored in dry, cool, clean and rainproof area. Recommended temperature range of storage is between 15-30 and relative humidity between 40%-70%.

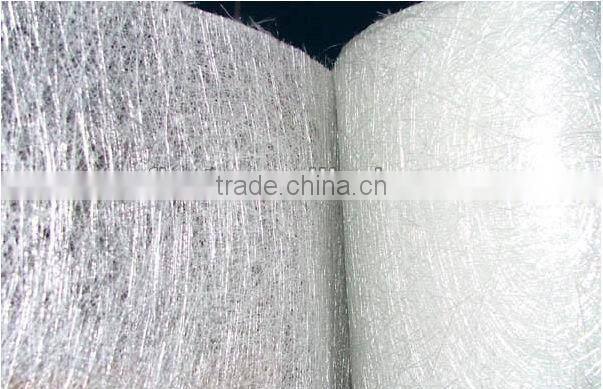

Photos:
