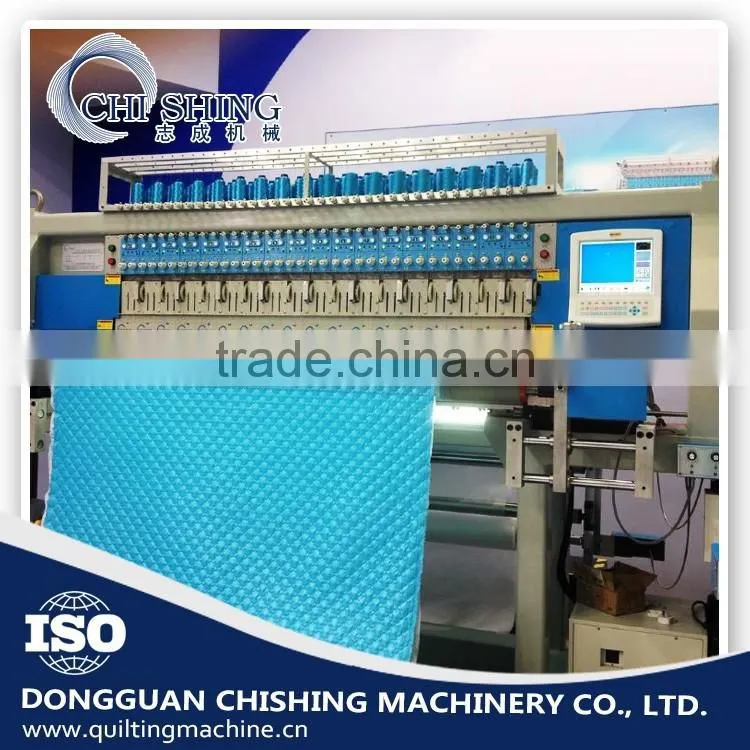

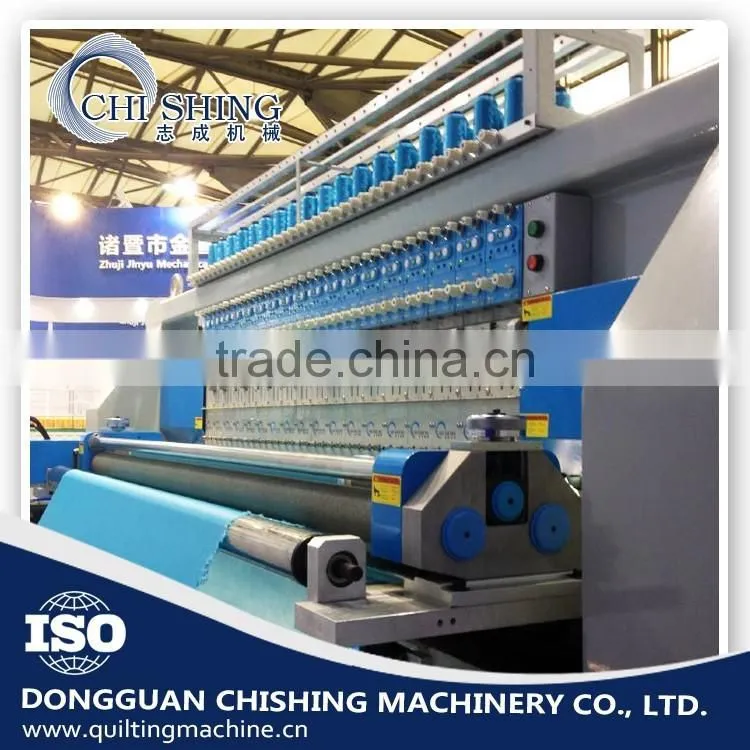

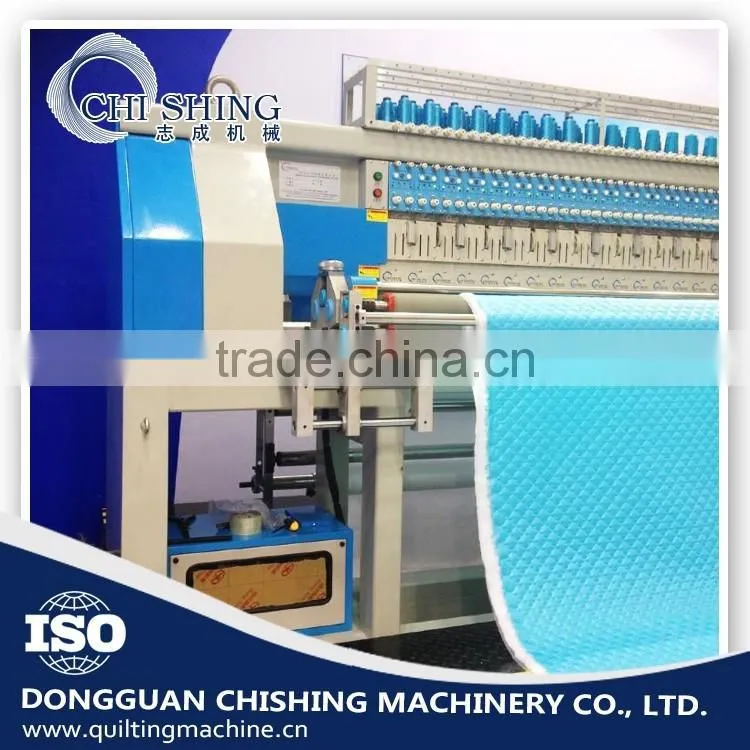

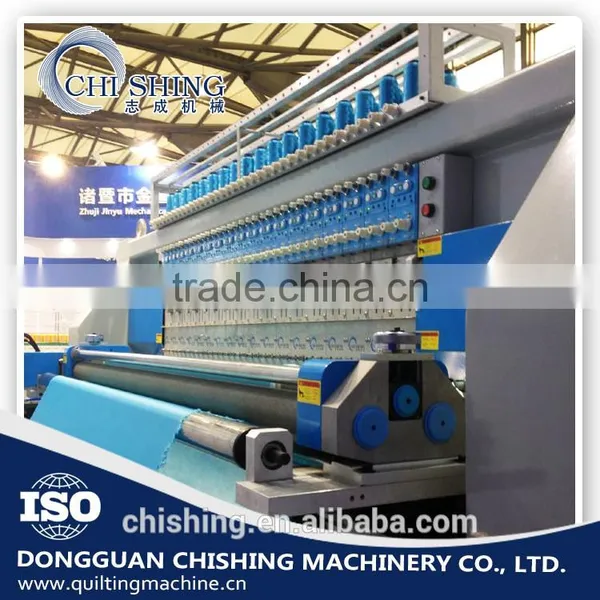

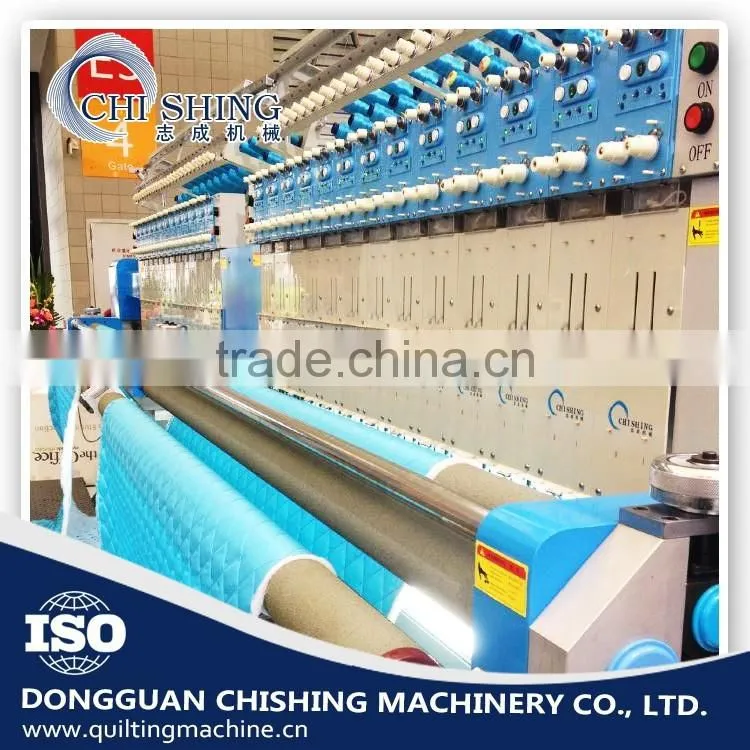

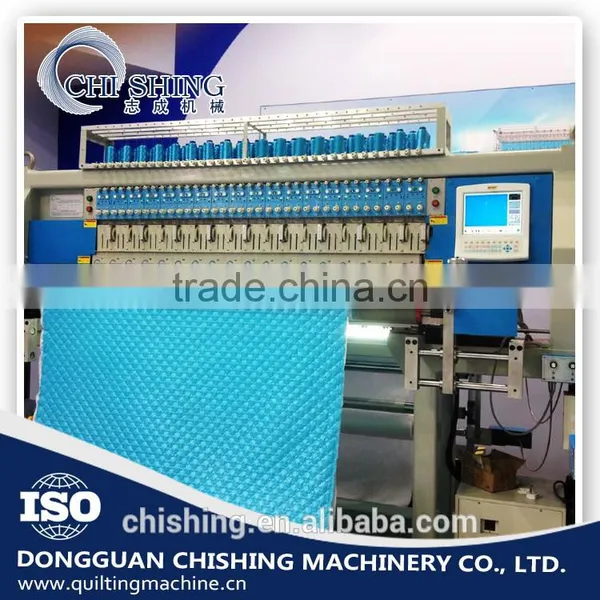

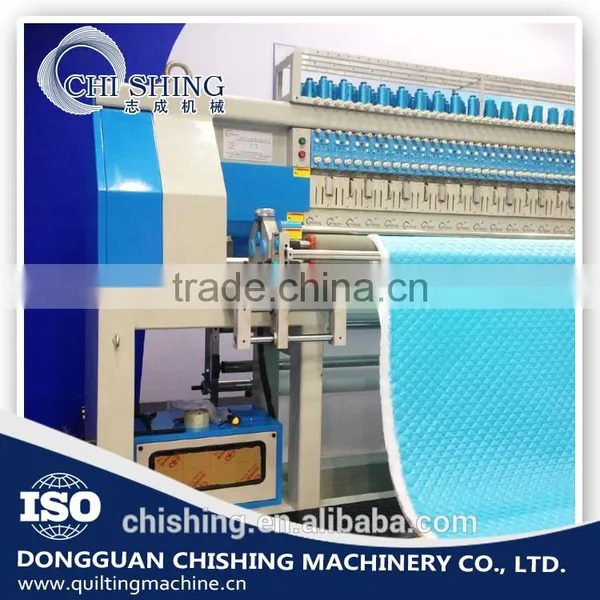

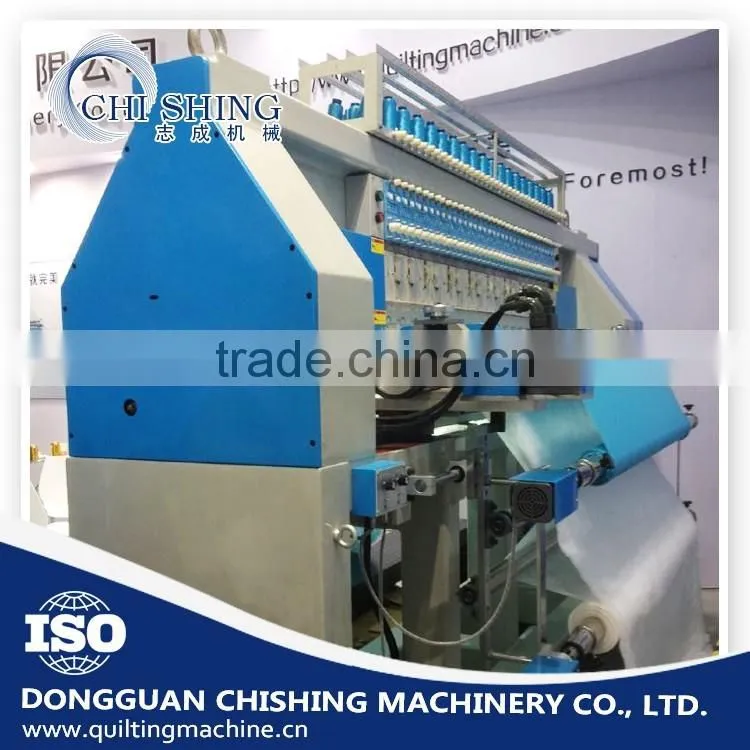

CSHX-2-36C High Speed two Needle Bar Quilting and Embroidery Machine | |||
Technical Data | |||
Dimensions ( L*W*H ) |
Embroidery Width |
Needles’ Quantity |
Heads’ Quantity |
3650*1490*2200mm |
1800 mm |
36 pcs |
18 |
Needle Distance |
Running Rate |
Quilting Thickness |
Needle Stitch |
50.8mm |
200-800 rpm |
≤400g/m2 |
2-12mm |
Needle Model |
Saddle Distance |
Production Capacity |
Rating Power |
#11-18 |
8” |
2-140m/h |
5.5kw 380v |
Technical Specification:
Features:
1. the simultaneous performance of quilting and embroidering.
2. High speed 800RPM
3. High capacity : KHS20-R rotating hook :120M yarn
4. Able to process different materials .For instance PU leather,cotton fabric ,knitting fabric, foam ,etc.
5. Three axes X,Y,Z arc controlled by Panasonic server motors separately
6. Top and bottom thread break detections
7. Automatic memory for the current position in case of power off.
8. The pattern-design system is acceptable to read common embroidering machine design format. USB
flash memory is used for storing patterns
9. The fabric-out use the three axes for adjustment it ensure the quilting effect.
10. Effective clutch is matched well with the ROLLER structure at the front and the rear, to prevent any
slipping of the fabric material
11. The needle rack is free of lubrication
12. The bottom thread can be used up, without waste.
Applications:
Because of using the large rotating hook, (KHS20-R) the bottom thread capacity can be up to 120 meters,

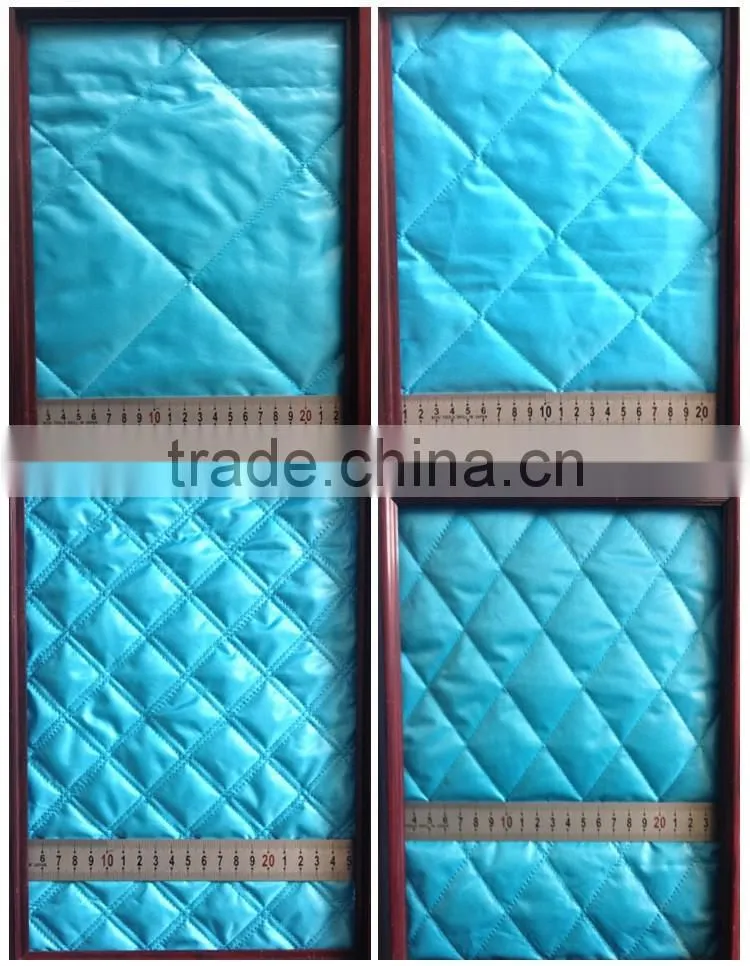

independent needle bar and presser foot. The stitch is very smooth, clear, beautiful with strong three-dimension effect which is particularly applicable to high-grade fabric processing. Such as,
clothing, beddings, bags, shoes, wardrobe doors and background walls, etc.
Main Features and Functions:
1. This quilting and embroidery machine adopting digital control program.
2. The revolution of the Spindle, Saddles and Rollers controlled by Panasonic servo motors and drivers.
3. Stitches length 2mm-12mm adjustable.
4. WILCOME pattern design system or other embroidery machine design software.
5. 360 degrees quilting and embroidery. The PC comes with more than 300 quilting and embroidery
patterns for your choices.
6. Tack and jump function included (independent patterns can be quilt).
7. Function of pattern compensation and effective solution to the distortion of patterns when quilting thick
materials.
8. Adjustable pressing plate lifting mechanism enables you quilt a broad range of material thickness.
9. Thread break detectors (top thread and bottom thread)
10. Automatic needle raising and location brake system.
11. Error problem detection system.
12. Emergency sensors safety device. Infrared sensors to guarantee the safety of the operator.
13.Improved quilting software control system allows more precise and stable quilting and embroidery operations.
14. Improved fabric loading system: The fabric-loading motor two way running makes the fabric loading more easier and faster and provides tension control
and ensure good quilting and embroidery effect.
Advantages of this new machine:
1.This machine can make pretty fine patterns with strong three-dimension effect.
2. This machine can solve the problem of repeat stitches.
3. This machine has the function of mending quilting and embroidery patterns.
4. High speed with two needle bars can promote production.

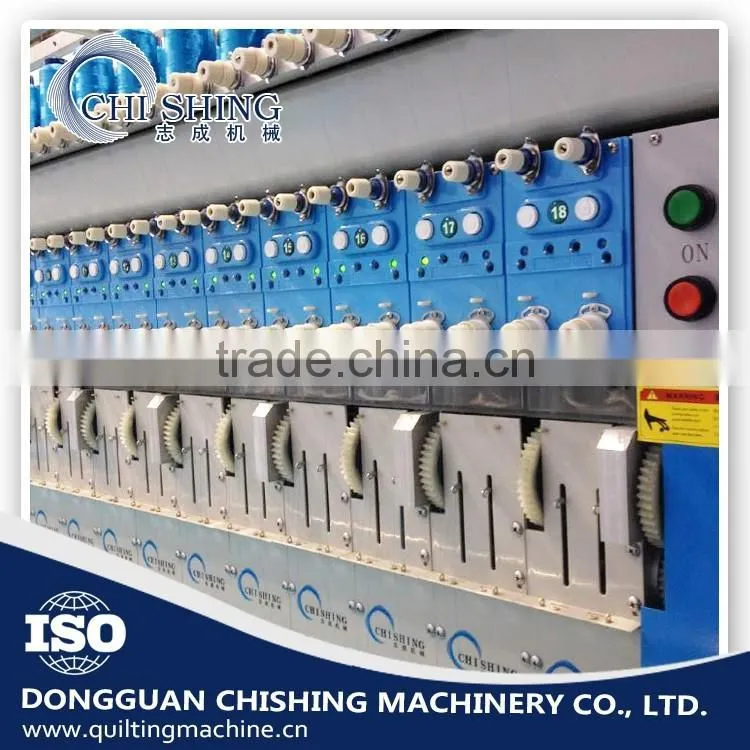

5. Each needle is independent. You can turn on /off each one by yourself according to your different patterns.
Dongguan Chishing Machinery Co., Ltd. was established in 1989 and has immediately secured a leading position in mainland Chinese quilting industry as one of the first manufacturers to produce multi-needle quilting machines.
At present, we are a professional manufacturer and developer of multi-needle quilting machines of various specifications. Since our foundation, our work space has increased to over 12,000 square meters, with our production capacity having been quadrupled. Our products include mechanical and digital control multi-needle machines of both shuttle and non-shuttle varieties. In order to satisfy the diverse requirements of our unique customers, our technicians continue to work hard in developing a new series of multifunctional quilting equipment.
Our products are sold worldwide and our sales currently account for 70% of the total Chinese quilting machine market. We maintain sales offices throughout China, as well as overseas offices in Canada, Pakistan, and Singapore. With an excellent reputation in the industry, outstanding after-sales service, and superior quality, we benefit both trust and appreciation from our customers and fulfill our goal of "reputation first, service first, and quality first".
We look forward to hearing from you in the near future.
With over 25 years' development, CHISHING has become a trustworthy textile equipment supplier which is specialized In R&D and manufacture of multi-functional sewing machine, Industrial embroidery machine, computerized quitting machine and other sewing accessories. We have gained several official and industrial recognitions which mainly include:
