Specifications
Sale computerized quilting machineUse for Bedspreads ,Mattress panel ,
Sofa protectors etc.
Different patterns are available
Sale computerized quilting machine
Main application and performances:
It is widely use for Bedspreads ,air-condition quilt,mattress panel,matress protectors,sofa cushions and sofa protectors .
1. Multi - span independent pattern (360°, 180° patterns are available)
2. Automatic pause in the case that the upper thread or the bottom thread breaks, automatic needle - lifting; and computerized speed adjustment.
3. Available features such as high rigidity, high speed of running, low vibration, low noise, and no collision.
4. Computerized control system of new generation to ensure the precision of quilting and reduce excessive parameter adjustment and pattern modification .
5. Computer drawing method to ensure the precise of pattern and facilitate the operation.
6. Strong functions of pattern - combining and multi - span quilting to enable you to quilt different patterns in the textile of different sizes .
7. Function of state detection and prompt to make you know the running state of the machine.
Sale computerized quilting machine Technical data:
|
Sale computerized quilting machine
| ||||
|
Machine code
|
CS110 | CS110 | CS128 | CS128 |
|
Function Spec
|
2 Needle row (110 Inch) |
3 Needle row (110 Inch) |
2 Needle row (128 Inch) |
3 Needle row (128 Inch) |
|
Size
|
5200 * 1100 * 1600mm | 5300 * 1200 * 1650mm | 5500 * 1100 * 1600mm | 5600 * 1200 * 1650mm |
|
Weight
|
3500KG | 3800KG | 4000KG | 4500KG |
|
MAX.Needles Quantity |
220 pcs | 330 pcs | 256 pcs | 384 pcs |
|
Stroke
|
203.2mm(8") | 304.8mm(12") | 203.2mm(8") | 30.8mm(12") |
|
Quilting Width
|
2794mm | 2794mm | 3251mm | 3251mm |
|
Running Rate
|
200-500r/m | 200-500r/m | 200-500r/m | 200-500r/m |
|
Needle Distance
|
25.4mm | 25.4mm | 25.4mm | 25.4mm |
|
Rating Power
|
6.2kw | 6.2kw | 6.2kw | 6.2kw |
|
Voltage
|
380v | 380v | 380v | 380v |
|
Needle Model
|
16/19 | 16/19 | 16/19 | 16/19 |
|
Quilting Thickness |
≤30mm | ≤30mm | ≤30mm | ≤30mm |

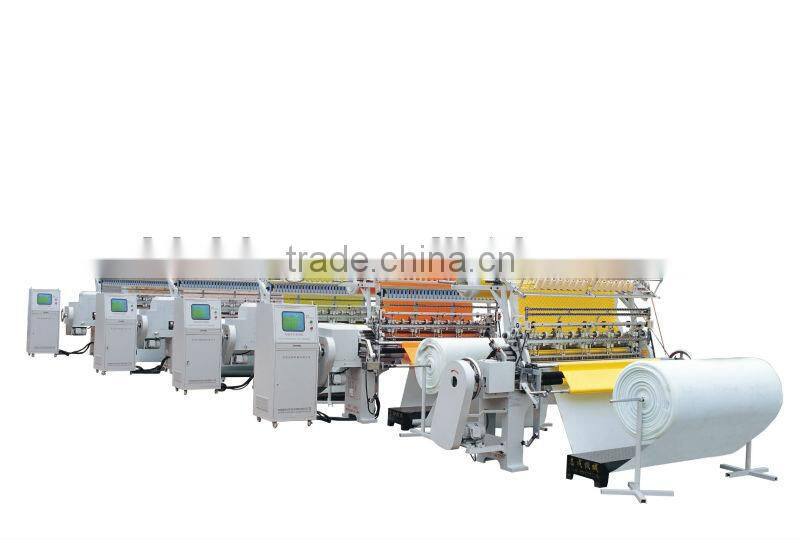

Sale computerized quilting machine detail pictures
Different models for you reference
After-sale service:
1) Installation & Commissioning: The seller can provide the installation, commissioning
and training service in buyer's factory, while the buyer needs to pay for VISA application,
air ticket, accommodation, and (if necessary) interpreting fee for seller’s technician.
2) After one year, the buyer needs to pay USD200/day/person as service charge, as well
as the fee of VISA application, air ticket , accommodation, and (if necessary) interpreting
fee for seller’s technician.
2. Warranty:For the machine above,the seller provides one year warranty starting from the
moment the seller dispatches the machines. For the detailed guarantee period of each
part, please refer to the operation manual.Wearing parts,consumption material and the
damage incurred by the buyer's incorrect operation are out of warranty range.
About Us
Dongguan Chishing Machinery Co., Ltd. was established in 1989 and immediately secures a leading position in the mainland Chinese quilting industry as one of the first manufacturers to produce multi-needle quilting machines.
At present, we are a professional manufacturer and developer of multi-needle quilting machines of various specifications. Since our foundation, our work space has increased to over 12,000 square meters, with our production capacity having been quadrupled. Our products include mechanical and digital control multi-needle machines of both the shuttle and non-shuttle varieties. In order to satisfy the diverse requirements of our unique customers, our technicians continue to work hard in developing a new series of multifunctional quilting equipment.
Our products are sold worldwide and our sales currently account for 70% of the total Chinese quilting machine market. We maintain sales offices throughout China, as well as overseas offices in Canada, Pakistan, and Singapore. With an excellent reputation in the industry, outstanding after-sales service, and superior quality, we benefit from both trust and appreciation from our customers and fulfill our goal of "reputation first, service first, and quality first".
