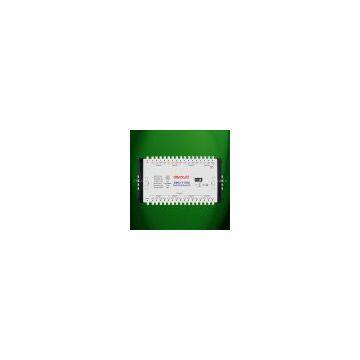

17×17×8 Satellite Multiswitch(EMC171708multi-switch)
Negotiable
MOQ: 100 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
EMC
Place of Origin:
China
Model Number:
EMC171708
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
13×13×32 Satellite Multiswitch(131332multi-switch)NegotiableMOQ: 100 Sets -
13×13×24 Satellite Multiswitch(131324multi-switch)NegotiableMOQ: 100 Sets
-
13×13×16 Satellite Multiswitch(131316multi-switch)NegotiableMOQ: 100 Sets
-
13×13×12Satellite Multiswitch(131312multi-switch)NegotiableMOQ: 100 Sets
-
13×13×8Satellite Multiswitch(131308multi-switch)NegotiableMOQ: 100 Sets
Brand Name
EMC
Place of Origin
China
Model Number
EMC171708
Detailed Product Description
16 satellite IF& 1 terrestrial TV inputs
8 Output for receivers
Built-in amplification circuit
Product Introduction
|
171708cascadable multiswitch is made up by four group of DiSEqC signal (V+H+V/22K+H/22) with 16 satellite inputs and 1 TV input.It is designed for 8 or less independent satellite receivers and has 17 cascadable connectors.Built-in signal amplification to compensate cascadable signal loss and would greatly increase the signal quality of the later connectors.The power is supplied by the stand-alone high&stability power. |
| Frequency range | Sat Input | 950-2300 |
| Terr Input | 5-872 | |
| Output | 5-2300 | |
| Control | DiSEqC V H V/22K H/22K | |
| Insertion loss | Sat Input and user | 2dB |
| Terr Input and user | 5dB | |
| Sat Input and cascadable | 0dB | |
| Terr Input and cascadable | 3dB | |
| Isolation | SAT/TERR | 32dB |
| SAT/SAT | 32dB | |
| LOW/HIGH | 26dB | |
| V/H | 23dB | |
| Input/Output connector | 75R | |
| Working current | 350mA(MAX) | |
| Transmission current | 1500mA(MAX) | |
| Working Voltage | DC12-20V | |
| Temperature Range | -40- +80℃ | |
| Dimension |
