Mechanical Model Quilting Machine(CSMS94"-2)

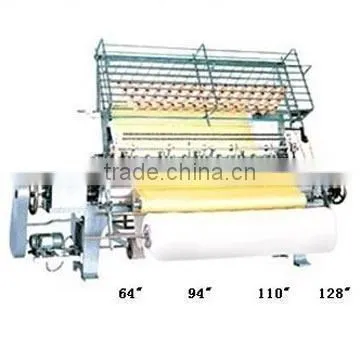

Mechanical Model Quilting Machine(CSMS94"-2) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
CHI SHING quilting machine
Model Number:
CS94"-2
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name CHI SHING quilting machine
Model Number CS94"-2
Certification ISO9001

Specifications

Manul quilting machine is low noise and high speed and easy operation

Whether quilts, blankets,bedspreads or sleeping bags, the CHISHING CS94 sets the benchmark. Due to the speed, reliability as well as low maintenance costs, the CHISHING CS94 is with out doubt the most efficient Lockstitch Multi-Needle Quilter worldwide. Extra-large bottom-thread capacity, automatic adjustment of fabric tightness(for exact adaptation of patterns). For a more detailed information which you want to know please contact us, as we are there for you.

Technical  Data

CS64INCH 2NEEDLE ROW

CS94INCH 2NEEDLE ROW



CS94INCH 3NEEDLE ROW



MAX. MATERIAL WIDTH

1.632mm/64"

2.394mm/94"

2.394mm/94"

SIZE(L*W*H)

3150*960*1560mm

4000*560*1600mm

4300*1150*1650mm

MACHINE  WEIGHT

1500kg

2200kg

2530kg

MAX.NEEDLES QUANTITY

128pcs

188pcs

282pcs

MAX LATERAL PASS

(SADDLE STROKE LENGTH)

101.6mm(4")

101.6mm(4")

177.8mm(6’’)

QUILTING WIDTH

1626mm

2388mm

2388mm

RUNNING RATE

480st/min

480st/min

480st/min

NEEDLE DISTANCE

25.4mm

25.4mm

25.4mm

RATING POWER

3.5kw

3.5kw

3.5kw

VOLTAGE

380v

380v

380v

NEEDLE MODEL

16/19

16/19

16/19

QUILTING THICKNESS

a)Foam ≤30mm

B)≤400g/m2 Polyester fiber

or≤10cm uncompressed  thickness



a)Foam ≤30mm

B)≤400g/m2 Polyester fiber

or≤10cm uncompressed  thickness



a)Foam ≤30mm

B)≤400g/m2 Polyester fiber

or≤10cm uncompressed  thickness
