Hydraulic Cylinder Bearing LFB - 0306 Self Lubricating Bushing SF-1T for Gear Pump
Description:
SF 1T is composed of a specially designed surface layer of PTFE formulations and is specifically applied for the high PV bushes of gear oil pumps.
It is to be used in hydrodynamic or boundary lubricating condition of medium or high pressure gear oil pumps such as P=16-25 Mpa,V=3.5-5m/s.it shows the benefit of low friction coefficient, wear resistant and anti-impact properties. At hydrodynamic lubrication, The PV limit reaches to 120N/mm2.m/S.
Fearture:
Maintenance-free! No lubrication required (PTFE composite) Minimum wall thickness, minimum space requirements Accommodation of heavy loads Wide range of temperatures Good sliding properties High wear resistanceStructure:
1.PTFE with lead 0.01~0.03mm
2.Porous bronze 0.2~0.3mm
3.Steel backing 0.7~2.3mm
4.Tin-plating 0.005mm or copper plating 0.008mm
Technical:
Load capacity:140N/mm2 Temperature:-195~+280°C
Speed limit:10m/s Friction coef(u):0.03~0.18
PV LIMIT(Dry):4.3N/mm2 .m/s PV LIMIT(OIL):60N/mm2 .m/s
CHEMICAL CHARACTERISTIC:
| TYPE | In Air | In Vacuum | In water | In Vapor | Weak Acid | middle Acid | Strong Acid | In Alkali |
| SF 1T | OK | OK | OK | OK | BAD | NO | NO | OK |
Application
SF -1X is widely used in various sliding motions of different kind of machine such as textile machine, tobacco machines, hydraulic, vehicles automobiles, agriculture machines and so on.
Quality Control:
MMD-10 Friction&Wear Test:
|
Type
|
Time | Test Condition | Friction coef(u) | TEMP. | Wear | ||
| Lubricate | Speed | Drang | (°C) | (mm) | |||
| SF 1T | 3hr | Dry | 0.4m/s | 3.5N/mm2 | 0.185 | 93 | 0,015 |
| SF 1T | 3hr | Oil | 0.4m/s | 3.5N/mm2 | 0.058 | 52 | 0,012 |
Packaging
1.Inner Packing: Bubble Bag, Plastic Bag, Anti-rust Paper;
2.Outer Packing: Carton / Wooden Case;
3.According to customers\' requirement, keep product preventing from damage.
Delivery

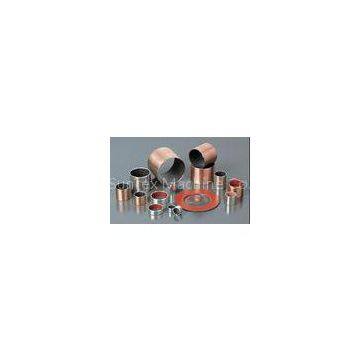

Picture show:
What we do:
Specialize in providing self lubricating material self lubricating solution.
Why Choose us?
We are bearing manufactiry ( Have our own technical department) High quality products ( long life and low noise ) Well- daserved Reputation (good stock guarantee) Professional servise ( promptly shippment )
