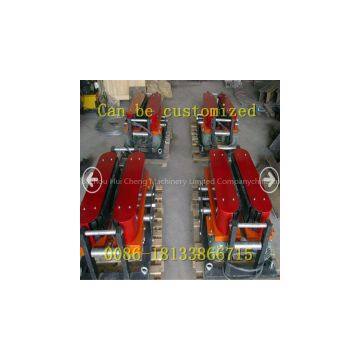

Track Cable Conveyer

Factory direct 7*24 hours service hotline 18133866715 cable conveyor is suitable for large section, long distance cable laying, reduce labor intensity, improve construction quality. Conveyor cable thrust, small size, light quality, convenient operation, in cable pipes, tunnels, truth, long distance transportation situation is particularly appropriate. It can be used in the construction of cable traction machine, lifting machine and other cable laying machines. It is convenient and fast, and can save manpower and material resources, so as to reduce construction cost effectively. Cable conveyor is divided into gasoline engine cable conveyer and motor, but the general construction is the motor cable conveyor, no power can choose the gasoline engine cable conveyor. Our factory is specialized in the production and development of cable conveyor, tractor cutter, motor cutter and other electric power construction tools manufacturers, trying to improve the manufacturing capacity, thereby expanding the field of product.

Model DSJ-180 DSJ-160

Pull (kg) 700900

Traction speed (M / min) 99

Motor 1.1KW x 21400 RPM / min 1.5KW x 21400 RPM / min

Dimensions (mm) 950 x 500 x 400 and 1000 x 530 x 400

Conveyor weight (kg) 150 180-200

Transport cable outer diameter of 30 160mm diameter 30 - 200mm

Drive I=45 I=45

Rubber sheet 25mm thick 25mm
