Mini Cnc Lathe Machine for Sale

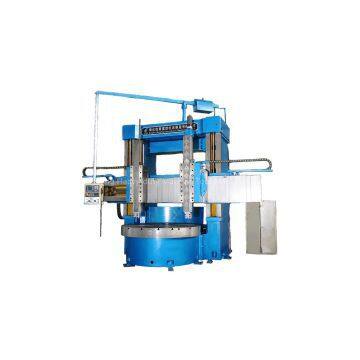

Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltd specializes in the manufactures and sells of metalworking machines: Vertical turret lathe,CNC lathe machine,Single column vertical lathe , Double column vertical lathe machine ,Heavy duty horizontal lathe machine, Gantry milling machine(Plano Miller), Gantry Planer Milling Machine, Roll turning lathe, Floor type boring lathe etc.

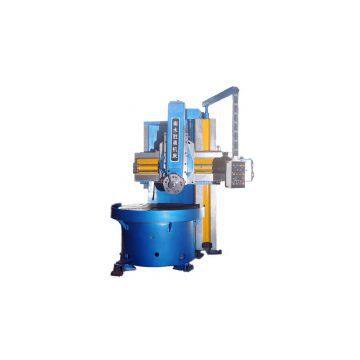

Technical specification of CNC Vertical turret lathe machine for metal CK5126

1 Table diameter 2300mm
2 Maximum turning diameter 2600mm
3 Maximum Height of workpiece 1300mm
4 Maximum Weight of workpiece 10 t
5 Speed range of table 2.5-80 r/min
6 rotation speed of work table 16
7 Range of feed rates 0-1000 mm/min
8 Step stepless
9 horizontal travel of vertical slide 1600 mm
Vertical travel of vertical slide 915 mm
10 Horizontal travel of side tool post 750 mm
Vertical travel of side tool post 900 mm
11 Crossrail travel 850 mm
12 Maximum size of tool bar section 35×45 mm
13 Power of main motor 37 kw
Rotating Speed 1470r/min
14 Power of feed motor 1.3/1.7 kw
Rotating Speed 940/1440 r/min
15 Rapid travelling speed of tool post 2000 mm/min
16 Machine weight(Approx) 19.5 t
17 Overall dimensions(L ×W×H) 3450x3430x4100mm
