Manual Lathe Machine Price for Sale

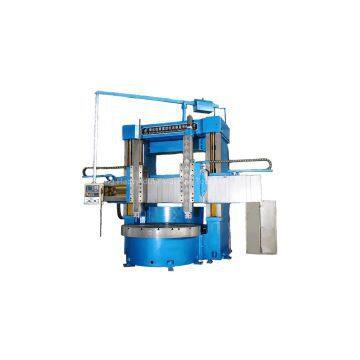

Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltd specializes in the manufactures and sells of metalworking machines: Vertical turret lathe,CNC lathe machine,Single column vertical lathe , Double column vertical lathe machine ,Heavy duty horizontal lathe machine, Gantry milling machine(Plano Miller), Gantry Planer Milling Machine, Roll turning lathe, Floor type boring lathe etc.

Technical specification of Single column manual vertical lathe machine C5123

1 Table diameter 2000mm
2 Maximum turning diameter 2300mm
3 Maximum height of workpiece 1300mm
4 Maximum weight of workpiece 8 t
5 Speed change of table 2.5-80 r/min
6 Working table Step of rotation speed 16
7 Feed rates 0.8-86 mm/min
8 Step 12
9 Horizontal travel of tool post 1250mm
Vertical travel of tool post 915mm
10 Horizontal travel of side cutter bar 650mm
Vertical travel of side cutter bar 1000mm
11 Crossrail travel 750mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Machine weight 19.5 t
16 Overall dimensions(L×W×H) 3300×3280×4000 mm
