LED Tube Light T5, T8, T10 Series

LED Tube Light T5, T8, T10 Series thumbnail-1
LED Tube Light T5, T8, T10 Series thumbnail-2
LED Tube Light T5, T8, T10 Series thumbnail-3
LED Tube Light T5, T8, T10 Series photo-1

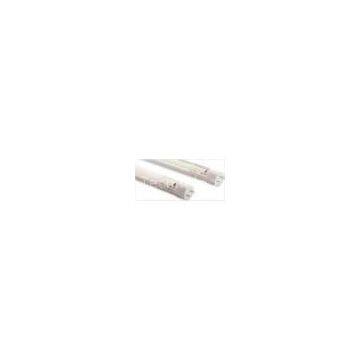

LED Tube Light T5, T8, T10 Series photo-2

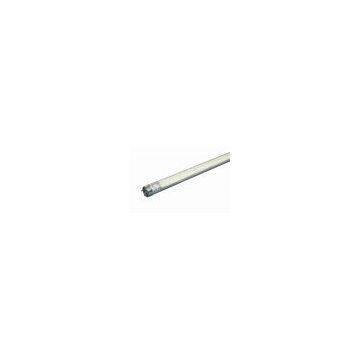

LED Tube Light T5, T8, T10 Series photo-3
Negotiable MOQ: 3 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
zgsm
Place of Origin:
China
Model Number:
T10 Series
Contact Supplier Request Quote Chat Now
Hangzhou ZGSM Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name zgsm
Place of Origin China
Model Number T10 Series

Model No. 		ZGSM-T10-600-150P
Input Voltage 90-264V AC, 50-60Hz
LED Q' ty & Power 150pcs SMD3528, 9.6W
Total Power 12W
LED Maintain Flux  1,008lm (Ta=25ºC)
Color Temperature Warm/ Pure/ Cool White
Material Aluminum and PC
Life 50,000hrs life, 3yrs warranty

Model No. ZGSM-T10-1200-150P
Input Voltage 90-264V AC, 50-60Hz
LED Q' ty, LED Power 150pcs SMD3528, 9.6W
Total Power 12W
LED Maintain Flux  1,008lm (Ta=25ºC)
Color Temperature Warm/ Pure/ Cool White
Material Aluminum and PC
Life 50,000hrs life, 3yrs warranty


Model No. ZGSM-T10-1200-180P
Input Voltage 90-264V AC, 50-60Hz
LED Q' ty, LED Power 180pcs SMD3528, 12W
Total Power 15W
LED Maintain Flux 1,260lm (Ta=25ºC)
Color Temperature Warm/ Pure/ Cool White
Material Aluminum and PC
Life 50,000hrs life, 3yrs warranty

Model No. ZGSM-T10-1200-240P
Input Voltage 90-264V AC, 50-60Hz
LED Q' ty, LED Power 240pcs SMD3528, 14.4W
Total Power 18W
LED Maintain Flux 1,512lm (Ta=25ºC)
Color Temperature Warm/ Pure/ Cool White
Material Aluminum and PC
Life 50,000hrs life, 3yrs warranty

Model No. ZGSM-T10-1500-240P
Input Voltage 90-264V AC, 50-60Hz
LED Q' ty, LED Power 240pcs SMD3528, 14.4W
Total Power 18W
LED Maintain Flux 1,512lm (Ta=25ºC)
Color Temperature Warm/ Pure/ Cool White
Material Aluminum and PC
Life 50,000hrs life, 3yrs warranty

Model No. ZGSM-T10-1500-300P
Input Voltage 90-264V AC, 50-60Hz
LED Q' ty, LED Power 300pcs SMD3528, 20W
Total Power 25W
LED Maintain Flux  2,100lm (Ta=25ºC)
Color Temperature Warm/ Pure/ Cool White
Material Aluminum and PC
Life 50,000hrs life, 3yrs warranty

Model No. ZGSM-T10-1800-390P
Input Voltage 90-264V AC, 50-60Hz
LED Q' ty, LED Power 390pcs SMD3528, 24W
Total Power 30W
LED Maintain Flux 2,520lm (Ta=25ºC)
Color Temperature Warm/ Pure/ Cool White
Material Aluminum and PC
Life 50,000hrs life, 3yrs warranty


Model No.: ZGSM-T8-600-150P
LED Q' ty, LED Power: 150pcs SMD3528, 9.6W
Total Power: 12W
Input Voltage: 90 - 264 V AC
Frequency Range: 50 - 60 HZ
Power Supply Efficiency: >= 80%
Total Harmonic Distortion(THD): < 10%
LED Initial Luminous Flux: 1,056lm (Ta=25ºC)
LED Maintain Luminous Flux: 1,008lm (Ta=25ºC)
LED Luminous Efficiency: 105lm/W (Ta=25ºC)
Lamp's Output Ratio/ Efficiency: >= 90%
Power Factor(PF): >= 0.99
Color Temperature(CCT): Cool White: 6,000 - 6,500K; Pure White: 5,000 - 5,500K; Warm White: 3,000 - 3,500K
Color Index(CRI): Pure White: Ra >= 70; Warm White: Ra >= 80
Beam Angle (50%): Vertical Axis:114º, Horizontal Axis: 109º
Beam Angle (10%): Vertical Axis:160º, Horizontal Axis: 167º
Optional Color: White and R. G. B. Y
Working Temperature: -5 to 45 ºC
Working Humidity: 10 to 70% RH
Storage Temperature: - -10 to 50 ºC
Lifespan: 50,000hrs life, 3yrs warranty
Light Body & Shade Material: Aluminum and PC
Tube Length: 600mm, 2ft
Tube N.W: 0.23 kgs
Packing Manner: 20pcs/Carton
Packing Dimension: 704 x 254 x 224 mm
Packing G.W: 5.8 kgs

Model No.: ZGSM-T8-1200-150P
LED Q' ty, LED Power: 150pcs SMD3528, 9.6W
Total Power: 12W
Input Voltage: 90 - 264 V AC
Frequency Range: 50 - 60 HZ
Power Supply Efficiency: >= 80%
Total Harmonic Distortion(THD): < 10%
LED Initial Luminous Flux: 1,056lm (Ta=25ºC)
LED Maintain Luminous Flux: 1,008lm (Ta=25ºC)
LED Luminous Efficiency: 105lm/W (Ta=25ºC)
Lamp's Output Ratio/ Efficiency: >= 90%
Power Factor(PF): >= 0.99
Color Temperature(CCT): Cool White: 6,000 - 6,500K; Pure White: 5,000 - 5,500K; Warm White: 3,000 - 3,500K
Color Index(CRI): Pure White: Ra >= 70; Warm White: Ra >= 80
Beam Angle (50%): Vertical Axis:114º, Horizontal Axis: 109º
Beam Angle (10%): Vertical Axis:160º, Horizontal Axis: 167º
Optional Color: White and R. G. B. Y
Working Temperature: -5 to 45 ºC
Working Humidity: 10 to 70% RH
Storage Temperature: - -10 to 50 ºC
Lifespan: 50,000hrs life, 3yrs warranty
Light Body & Shade Material: Aluminum and PC
Tube Length: 1200mm, 4ft
Tube N.W: 0.41 kgs
Packing Manner: 20pcs/Carton
Packing Dimension: 1304 x 254 x 224 mm
Packing G.W: 10.2 kgs

Model No.: ZGSM-T8-1200-180P
LED Q' ty, LED Power: 180pcs SMD3528, 12W
Total Power: 15W
Input Voltage: 90 - 264 V AC
Frequency Range: 50 - 60 HZ
Power Supply Efficiency: >= 80%
Total Harmonic Distortion(THD): < 10%
LED Initial Luminous Flux: 1,320lm (Ta=25ºC)
LED Maintain Luminous Flux: 1,260lm (Ta=25ºC)
LED Luminous Efficiency: 105lm/W (Ta=25ºC)
Lamp's Output Ratio/ Efficiency: >= 90%
Power Factor(PF): >= 0.99
Color Temperature(CCT): Cool White: 6,000 - 6,500K; Pure White: 5,000 - 5,500K; Warm White: 3,000 - 3,500K
Color Index(CRI): Pure White: Ra >= 70; Warm White: Ra >= 80
Beam Angle (50%): Vertical Axis:114º, Horizontal Axis: 109º
Beam Angle (10%): Vertical Axis:160º, Horizontal Axis: 167º
Optional Color: White and R. G. B. Y
Working Temperature: -5 to 45 ºC
Working Humidity: 10 to 70% RH
Storage Temperature: - -10 to 50 ºC
Lifespan: 50,000hrs life, 3yrs warranty
Light Body & Shade Material: Aluminum and PC
Tube Length: 1200mm, 4ft
Tube N.W: 0.41 kgs
Packing Manner: 20pcs/Carton
Packing Dimension: 1304 x 254 x 224 mm
Packing G.W: 10.2 kgs

Model No.: ZGSM-T8-1200-240P
LED Q' ty, LED Power: 240pcs SMD3528, 14.4W
Total Power: 18W
Input Voltage: 90 - 264 V AC
Frequency Range: 50 - 60 HZ
Power Supply Efficiency: >= 80%
Total Harmonic Distortion(THD): < 10%
LED Initial Luminous Flux: 1,584lm (Ta=25ºC)
LED Maintain Luminous Flux: 1,512lm (Ta=25ºC)
LED Luminous Efficiency: 105lm/W (Ta=25ºC)
Lamp's Output Ratio/ Efficiency: >= 90%
Power Factor(PF): >= 0.99
Color Temperature(CCT): Cool White: 6,000 - 6,500K; Pure White: 5,000 - 5,500K; Warm White: 3,000 - 3,500K
Color Index(CRI): Pure White: Ra >= 70; Warm White: Ra >= 80
Beam Angle (50%): Vertical Axis:114º, Horizontal Axis: 109º
Beam Angle (10%): Vertical Axis:160º, Horizontal Axis: 167º
Optional Color: White and R. G. B. Y
Working Temperature: -5 to 45 ºC
Working Humidity: 10 to 70% RH
Storage Temperature: - -10 to 50 ºC
Lifespan: 50,000hrs life, 3yrs warranty
Light Body & Shade Material: Aluminum and PC
Tube Length: 1200mm, 4ft
Tube N.W: 0.41 kgs
Packing Manner: 20pcs/Carton
Packing Dimension: 1304 x 254 x 224 mm
Packing G.W: 10.2 kgs
