Product Details
Basic Info.
Certification:AREMA, DIN, GB, Bsw, JIS, ANSI
Part:Rail Fastener
Bolt Grade:4.6, 4.8, 6.8, 8.8, 10.9
Warranty:>3 Years
Color:Customized
Material:Qt400-15(Ggg40), Qt450-10(Ggg45), Qt500-7 (Ggg50)
Surface:Plain Oiled,Oxygen Black,Zinc Plated,HDG
MOQ:5000 PCS
Supply Ability:1000 Ton/Tons Per Month
Delivery:Within 20 Working Days
Export Markets:Global
Additional Info.
Trademark:Alex
Packing:25kg Per Woven Bag in Fumigation Free Pallet
Standard:SGS
Origin:Jiangsu
HS Code:7307110000
Production Capacity:1000 Tons/ Month
Product Description
Materials:QT400-15(GGG40), QT450-10(GGG45), QT500-7 (GGG50)
Surface: Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating
Standard: GB/T 1222, DIN 17221
MOQ: 5000 Piece/Pieces
Supply ability: 1000 Ton/Tons per Month
Delivery: within 20 working days

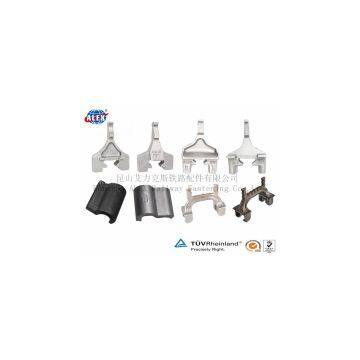

KSALEX Rail Shoulder
The
KSALEX rail shoulder is pre-inserted in the concrete tie. There are
M.C.I. shoulder manufactured from malleable iron and S.G.C.I. shoulder
manufactured from malleable iron and S.G.C.I. shoulder from spheroid
graphite iron. We offer two types of iron shoulders. One is Single Stem
Iron Shoulder used in pre-stressed concrete ties and the other is Twin
Stem Iron Shoulder used in Bi-Block or Twin Block concrete ties.
Iron KSALEX rail shoulder material technical parameter
|
Material |
Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) |
| QT400-15(GGG40) | 400 | 250 | 15 |
| QT450-10(GGG45) | 450 | 310 | 10 |
| QT500-7 (GGG50) | 500 | 320 | 7 |
Kunshan
Alex Railway Fastening Co., Ltd manufactures railway fasteners and
standard components. As a leading railway fasteners manufacturers in
China,with production license of Chinese railway Ministry, advanced
technology, high precision inspection instruments and service, our
products have been widely exported the USA, Germany, Spain, Japan,
Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South
Africa etc.

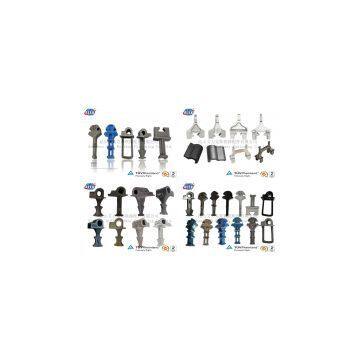

We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Deenik clip
3.
Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor
bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel
bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
