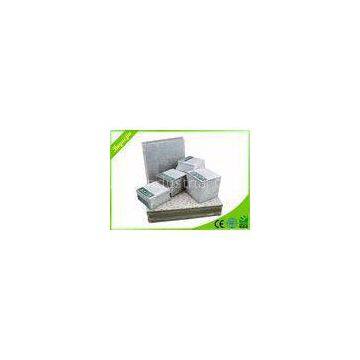

Bathroom Waterproof Thickness Precast Concrete Sandwich Panels 90mm Thickness
Description
Precast Concrete Sandwich Panels has features of light weight, high intensity, thin, waterproof and fire proof, heat preservation, sound insulation, quakeproof, low cost and space-saving. Eps cement sandwich panel is widely applied to interior wall partition, exterior wall and roof for all kind of constructions.Its birth marks the wall material will appear renewal trend, instead of traditional block, the new architecturalthoughts and its outstanding performance can meet the requirements of modern architectural environmet.
Specification
|
Length (mm) |
Width (mm) |
Thickness (mm) |
Density (kg/m2) |
Application |
Appearance |
|
2270 2440 3000 |
610 |
50 |
38±5 |
Non-load bearing wall of houses and buildings |
With calcium silicate board as face board, solid |
|
60 |
42±5 |
||||
|
75 |
45±5 |
||||
|
90 |
52±5 |
||||
|
100 |
56±5 |
||||
|
120 |
62±5 |
||||
|
150 |
72±5 |
||||
|
180 |
85±5 |
||||
|
200 |
95±5 |
Specification
|
NO. |
Item |
National Standards |
Testing Results |
||||
|
60mm |
90mm |
120mm |
60mm |
90mm |
120mm |
||
|
1 |
Anti-impact performance/times |
≥5 |
≥5 |
≥5 |
≥6 |
≥6 |
≥10 |
|
2 |
Anti-bending damage load/times over deadweight |
≥1.5 |
≥1.5 |
≥1.5 |
≥3 |
≥3 |
≥3 |
|
3 |
Anti-pressure strength /Mpa |
≥3.5 |
≥3.5 |
≥3.5 |
≥6 |
≥6 |
≥6 |
|
4 |
Surface density kg/m2 |
≤70 |
≤90 |
≤110 |
≤45 |
≤54 |
≤66 |
|
5 |
Single point hanging Strength /N |
≥1000 |
≥1000 |
≥1000 |
≥1000 |
≥1200 |
≥1300 |
|
6 |
Fire proof limit /h |
≥1 |
≥1 |
≥1 |
≥3 |
≥3 |
≥4 |
|
7 |
Sound insulation capacity in the air /Db |
≥30 |
≥35 |
≥40 |
≥35 |
≥40 |
≥45 |
|
8 |
Soften coefficient |
≥0.80 |
≥0.80 |
≥0.80 |
≥1 |
≥1 |
≥1 |
|
9 |
Moisture rate a/% |
≤12 |
≤10 |
≤10 |
≤10 |
≤9 |
≤7 |
|
10 |
