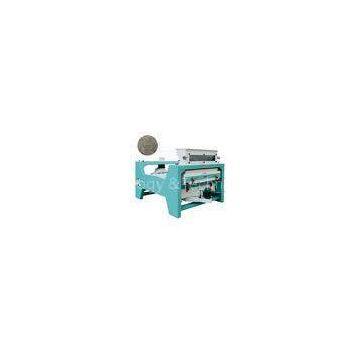

Steady running Grain Pre cleaner TQLM 125 0.75KW Automatic Cleaning Equipment
Description:
As a result of plane rotary movement principle, effectively reducing the static and dynamic equipment and infrastructure than the dynamic load. The device uses a rotary shaker plane up and down vibration, automatic cleaning equipment under the net, the more traditional line screen, the improved screen life, low noise, large screening area.
Features:
1. Each screen has a screen attempts to prevent the cleaning device. Screen not plugging holes, extended operating cycle. Screening machine in working condition for a continuous cycle to clean the screen;
2. As a result of the plane rotation principle, significantly improves the distribution of materials, thereby increasing the effective utilization of the screen surface, and ultimately improve screening efficiency and reduce the powder content of the finished material;
3. Steady feeding flow in feeding box, stuff can be distributed even in width direction. The movement of sieve box is three tracks. It has strong adaptability for different grain with impurities;
4. It can remove large,middle,small and light impurities from grains simultaneously;
5. Smooth operation and long service life;
TQLM125 Technical Data:
|
Model |
TQLM100 |
TQLM125 |
TQLM150 |
|
Handle first pure/tidy up (T/H) |
20/6 |
25/8 |
30/10 |
|
Sieve name width(MM) |
1000 |
1250 |
1500 |
|
Inclination of sieve(°) |
3 |
||
|
Rotation Speed (R/MIN) |
300.400.500(Adjustable) |
||
|
Power ( KW) |
0.75 |
||
|
Air capacity (M3/MIN) |
12 |
15 |
18 |
|
Weight (KG) |
700 |
800 |
1000 |
|
Dimension(LxWxH, MM) |
2020x1400x1460 |
2020x1650x1460 |
2315x1900x1480 |
Q1: Will you make the drawings for the complete set to your customer?
Yes, we will make the drawing for the complete set once confirm price
Q2: Could u offer the complete set as customer\'s requirement?
Sure, we could produce the complete set as customers\' requirement.
Q3: What is your delivery time?
It is based on the customer\'s requirement, as usual, 20 days available
