Certification:ISO9001

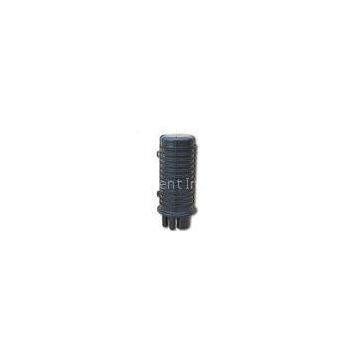

286 core Fiber Optic enclosure PP , 6 small round ports 8 tray
Quick Detail:
IP68 Dome type fiber optic splice closure.1 oval port+6 round ports;Max 8 trays and 288 cores,max ribbon fiber 864 core;Suit for 8-26mm cables;Used for wall mounted,pole mounted,man hole,duct mounting and pipeline,direct buried..
Description:
1. Protection grade:IP68
2. Material:PP,ABS(new first hand raw material)
3. Number of cable ports: 1 big oval port(74x54) and 6 small round ports(26.4)
4. Maximum Trays: 8 trays
5. Maximum Cores:286(singlel core) ribbon fiber 864
6. Dimension (HxD):505mm *180 mm
7. Package material:Carton
8. Weight:4.0-4.5Kg
9. Cable diameter range:10-26mm
10. Sealing way of cables:Heat shrinking
11. Quality warrenty:2 years
12. Life span:more than 25 years
Applications:
Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..
Specifications:
|
Model |
No.of ports |
Cable range |
Max trays |
Max Capacity |
Dimensions |
|
GJS20-DR05B-7port |
7(1oval+6round) |
10-26.5mm |
8 |
288 cores |
505×ф180mm |
|
GJS20-DR05B-7port-ribbon |
7(1oval+6round) |
10-26.5mm |
4 |
864 cores |
505×ф180mm |
Competitive Advantage:
Easy & fast installation with no special tools,suit for uncut cables Superior sealing performance(free sample for testing) The closure can be repeatly used many times. The cables can be fixed via 3 points,safe and reliable Big capacity.Enough space for surplus fibers inside the closure Flexible branching for fibers loose leaf type of splice tray fixing,easy operation&maintain Modular fiber management system
