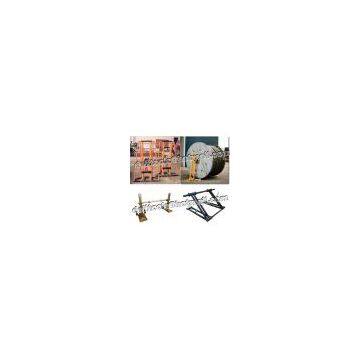

Help CenterCable Drum Trestles/made of Cast Iron
Related Products
-
Hydraulic Drum Jacks/Mechanical Drum JacksNegotiableMOQ: 1 Piece -
Fiber Glass Duct Rodders/Duct Rodder/ Duct RodNegotiableMOQ: 1 Piece
-
Duct Rodder/Fish Tapes/ Conduit SnakesNegotiableMOQ: 1 Piece
-
Duct Rodders/Duct Rods/COBRA CONDUIT RODNegotiableMOQ: 1 Piece
-
Frp Duct Rod/Fiberglass Duct Rodders & FishtapesNegotiableMOQ: 1 Piece
Product No.: DL013 Product name: Trapezoidal cable drum jack (mechanical type)
Application: applied in the supporting of cable drum when laying cable. Manual-drive and mechanical jacking equipment saves time and labor a lot. With trapezoidal structure, it can be applied in different kinds of reel specification. Trundles installed on the bottom make it easy to move.
|
Product No. |
Rated load |
Applicable drum diameter |
Applicable drum width |
Axle bar diameter |
Dead weight |
|
DL013-3 |
3T |
φ700mm-φ2100mm |
≤1500mm |
φ60mm |
96kg |
|
DL013-5 |
5T |
φ700mm-φ2400mm |
≤1700mm |
φ76mm |
137kg |
|
DL013-10 |
10T |
φ700mm-φ3200mm |
≤1800mm |
φ120mm |
219kg |
Product No.: DL012 Product name: Trapezoidal and hydraulic cable drum jack
Application: applied in the supporting of cable drum. With trapezoidal structure, it can be applied in different kinds of reel specification. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.
|
Product No. |
Rated load |
Applicable drum diameter |
Applicable drum width |
Axle bar diameter |
Dead weight |
|
DL012-3 |
3T |
φ700mm-φ2100mm |
≤1500mm |
φ60mm |
112kg |
|
DL012-5 |
5T |
φ700mm-φ2400mm |
≤1700mm |
φ76mm |
151kg |
|
DL012-10 |
10T |
φ700mm-φ3200mm |
≤1800mm |
φ120mm |
235kg |
