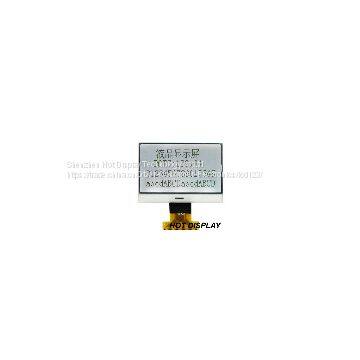

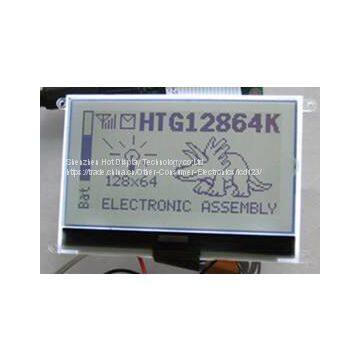

128*64dots Gaphic LCD Module FSTN-,positive I2C Interface
US$ 2 - 4
MOQ: 1 Chain
Key Specifications
Get Latest Price
Brand Name:
HOT DISPLAY
Place of Origin:
China
Model Number:
HTG12864-I2C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
10 days
Related Products
-
128*32 Dots Graphic LCD Module Outline Dimensions: 34.5*17.9mmUS$ 2 - 6MOQ: 1 Chain -
Supply a 1.5 -inch Monochrome 12864 Graphic Dot Matrix LCD Display ScreenUS$ 2 - 6MOQ: 1 Chain
-
132*64Dots Gaphic LCD Module for Handset Operating Voltage: 3.3VUS$ 2 - 6MOQ: 1 Piece
-
128*48Dots Graphic LCD Module on Medical AppliancesUS$ 2 - 6MOQ: 1 Piece
-
128*32dots Gaphic Lcd Module on Coffee MachineUS$ 2 - 6MOQ: 1 Piece
Brand Name
HOT DISPLAY
Place of Origin
China
Model Number
HTG12864-I2C
| 128*64dots Gaphic LCD Module FSTN-,positive I2C interface |
| HTG12864-78 |
| LCD display mode: Gaphic LCD Module FSTN-,positive , and transflective |
| Resolution: 128*64dots |
| Outline dimensions:48*36mm |
| Viewing area:39.64*19.8mm |
| Operating voltage: 3.3V |
| Viewing angle: 6 o'clock |
| Operating temperature: -20 to +70 degrees |
| Storage temperature: -30 to +80 degrees |
| Controller:UC1601S |
| Driving method :1/64duty .1/9Bias |
| Backlight: Optional |
| SKYPE:HotDisplay |
| QQ: 189323908 |
| Email;Sales@hotlcd.com |
| Format | Model Name | Control/Driver | Outline Dimension | V.A.(mm) | Supply Voltage | interface Mode |
| 16 x 3 | HTG1603A | ST7036 | 39.0 x 25.5 x 2.0MAX. | 35.0 x 17.0 | 3.3V | Parallel |
| HTG1603B | ST7036 | 64.0 x 33.5 x 2.0MAX. | 61.0 x 25.0 | 3.3V | Parallel | |
| 96 X 16 | HTG9616A | ST7549 | 29.2 x 10.8 x 1.7MAX | 21.0 x 6.0 | 3.0V | I2C |
| 96 X 26 | HTG9626A | ST7549 | 32.9 x 17.0 x 1.7MAX | 29.9 x 9.0 | 3.0V | Parallel |
| 96 X 96 | HTG9696A | SSD1848 | 29.9 x 35.9 x 2.9MAX | 25.0 x 25.0 | 3.3V | Parallel / Serial |
| 128 x 32 | HTG12832A | ST7565P | 34.5 x 17.9 x 2.0MAX. | 32.0 x 10.1 | 3.0V | Parallel |
| HTG12832F | ST7565R | 63 x 27.5 x2.0MAX | 59 x17.5 | 3.0V | Parallel | |
| HTG12832F-3 | ST7565R | 63.0 x 27.5 x 2.0MAX. | 59.0 x 17.5 | 3.0V | Parallel | |
| HTG12832F-6 | ST7565R | 65.4 x 29x 3.4MAX. | 59.0 x 17.5 | 3.0V | Parallel / BL | |
| HTG12832I | ST7565R | 51 x 25.5x 1.7MAX. | 48 x17.2 | 3.0V | Parallel / Serial | |
| 128 x 48 | HTG12848A | ST7565R | 78.7 x 35.9 x 2.8MAX. | 75.3 x 28.3 | 3.3V | Parallel |
| HTG12848B | ST7565R | 76.3 x 40.1 x 2.8MAX. | 73.3 x 32.5 | 3.3V | Parallel / Serial | |
| 128 x 64 | HTG12864C | ST7565R | 39.0 x 31.1 x 1.9MAX. | 36.0 x 23.5 | 3.0V | Parallel / Serial |
| HTG12864D | ST7565R | 31.0 x 27.0 x 1.7MAX. | 28.0 x 18.0 | 3.0V | Parallel | |
| HTG12864I | ST7565R | 69.1 x 50.0 x 2.8MAX. | 65.5 x 38.0 | 3.0V | Serial | |
| HTG12864T | ST7565P | 53.2 x 37.8x 2.8MAX. | 45.2 x27 | 3.3V | Parallel / Serial | |
| HTG1284LQ | ST7565P | 28.5 x20x 1.85MAX. | 25.5 x13.3 | 3.3V | Parallel | |
| HTG12864N | ST7565P | 35.8 x 33.3 x 2.7MAX | 31 x 21 | 3.0V | Parallel | |
| HTG12864W | ST7565P | 57 x 39.3 x 2.0MAX | 52.6x 27.5 | 3.3V | Parallel / Serial | |
| HTG12864K1 | NT7534 | 89.8 x 54.6 x 7.0MAX | 70.7 x 38.8 | 3.0V | Serial，Add BL | |
| HTG12864-9 | ST7565P | 33.1x 31.5 x1.70MAX | 30.1 x 23.3 | 3.3V | Serial | |
| HTG12864-20 | ST7565P | 53.2 x 37.8 x 2.8MAX. | 45.2 x 27.0 | 3.3V | Parallel / Serial | |
| HTG12864-55 | ST7565R | 28.55 x 20.1 x1.7MAX. | 26.15 x13.9 | 3.3V | Serial | |
| 128 x 128 | HTG128128D | SSD1779 | 49 x 53 x2.0MAX. | 46 x 38 | 3.3V | Parallel |
| HTG128128K | S6B0741 | 46.5 x 55.2 x1.8MAX. | 39.64 x46 | 3.3V | Parallel | |
| HTG18128Z | SSD1848 | 46.5 x 55.2 x 1.8MAX. | 39.64 x 46.04 | 3.0V | Parallel,Add BL | |
| HTG13264C | ST7565R | 57.5 x 41.0 x 2.0MAX. | 54.0 x30.2 | 3.3V | Parallel | |
| 240 x 160 | HTG240160C | ST7529 | 77.42 x 61.0x2.0MAX. | 73.42 x 48.0 | 3.3V | Parallel |
