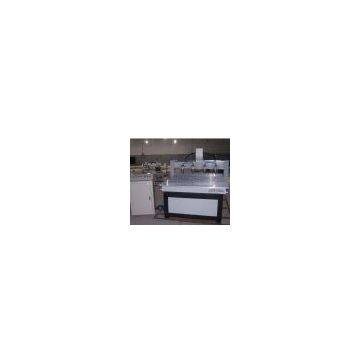

Woodmaking Cnc Router(JCUT-1312-4)

Woodmaking CNC Router JCUT- 1312A-4 (15.7''+15.7'' +15.7'') x 47''

Applications:

Can be used on advertisement engraving, advertisement cutting, stone processing

cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting,

wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment mold processing cutting, sign and mark manufacturing cutting, Acryl board processing cutting, stamp cutting

Features:

1) Machine body: whole cast iron

2) Guide way: cylindrical guide way

3) D riving mode :ball screw

4 ) Work dimensions: (400mm+400mm+400mm) x 1,3 00 mm x 80mm

5 ) Body dimensions: 1,600 mm x 17 00 mm x 1,600mm (with bracket)

6 ) Z-axis working area: 80mm (or 150mm)

7 ) Max. Feeding height: 120mm or bigger

8 ) Cut thickness of material: ≤ 40mm

9 ) Max. Speed: 6,000mm/min

10 ) Working speed: 0 - 4,000mm/min

11 ) Mechanical precision: 0.01mm

1 2 ) Software: type 3 software, Artcut software, Artcam software

1 3 ) Max. Power consumption: 1.8kW

1 4 ) Power source: AC 220/50 /60 Hz (or 110v/60HZ)

1 5 ) Driver type: stepper motor (XYZ-85BYG motor)

1 6 ) Memory: without or (DSP)

1 7 ) Spindle: 1.5kW (80mm) variable speed, water cooled motor ( or 2.2kW or 3kW ,or

bigger

1 8 ) Spindle speed: 0 - 24,000rpm /min

1 9 ) Blade diameter: 3.175mm, 4mm, 6mm ( or 8mm,10mm,12mm, 12.7mm )

20 ) Control system: (NCSTUDIO) or DSP (USB interface)

21 ) Command: G code, u00, mmg, plt

2 2 ) Running circumstance temperature: 0 - 45 C

2 3 ) Relative humidity: 30% - 75%

Packing:

Pack dimensions: 1, 80 0 x 18 00 x 1,700mm

Net weight: 800kg (with bracket)

Gross weight: 900kg
