1 - 3 m Cemented Tungsten Carbide Ball Bearings with Powder Metallurgy Techniques
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Bending Strength 3000 MPa Tungsten Carbide Ball with 10% CO content used for Ball Mill
-
High Density 14.2 g / cm3 Tungsten Carbide Sphere blank made by 1 - 3 micron TC powder
-
Excellent wearproof Tungsten Carbide Blanks Ball 10% cobalt content for linear bearings
-
High Hardness 10% CO content Tungsten Carbide Ball 3000 MPa extremely hard alloy
-
High temperature Tungsten Bar with Hardness 24 - 28 HRC, Elongation 18 - 29%
-
HIP Sintering 91% W Content Tungsten Alloy Bar with Tensile Strength 900 - 1000 MPa
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS

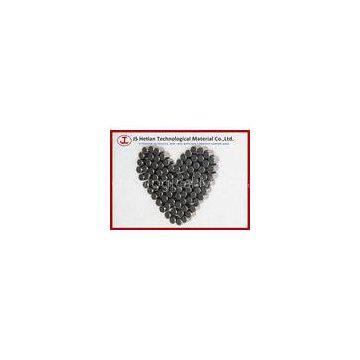

1 - 3 μm Tungsten Carbide Ball blank using by Powder Metallurgy Techniques
Description:
Tungsten carbide ball, commonly known as tungsten steel balls, it is made of optimum quality tungsten carbide and binder cobalt produced by powder metallurgy techniques.
TC ball is usually used in harsh conditions, and can perfectly substitute steel balls. Our cemented carbide balls are marked by high hardness, good wear resistance and bending strength. We can also provide products in different sizes and grades to meet our clients’ requirements.
Tungsten carbide balls are used where extreme hardness and wear resistance is required, such as bearings, ball screws, valves, flowmeters.
Parameters
|
Jinlei Grade |
YG10 |
|
WC incl. Doping (%) |
90 |
|
Co (%) |
10 |
|
Grain Size (μm) |
1-3 |
|
Hardness (HRA) |
≥ 90.8 |
|
TRS (MPa) |
≥ 3000 |
|
Density (g/cm3) |
14.1 |
|
Features |
Excellent hardness, wear resistance and bending strength |
Application:
Tungsten carbide balls are used in applications requiring extreme hardness and resistance to wear and can withstand hard shocks and impacts. The common applications are ball valves, flow meters, ball bearings, linear bearings, and ball screws.
Advantages:
Fast delivery because there are many standard size in our stock. And we own 11 years professional production experience of tungsten carbide powder, so we can guarantee that the raw materials of tungsten carbide ball are all qualified and every process is under our strictly monitored.
