PCB Machine , Professional Pcb Routing ,milling Machine , PCB Cutting , Routing . Milling Machine ,professional Pcb Router Machine

The most boring ting to do is to make the PCB. Though now most people give the boring affairs to the PCB factory, yet it is indeed too long to wait for about three days or a week. New inspiration for a design is usually given up because of the trouble. While a PCB making machine can finish making a piece of PCB only in a few minutes, which can let your inspiration instant come true.
Main features:
1.High efficiency: It merely need a few minutes to make a piece of PCB. 2.Accuracy: The min error of numerical control drill hole less than 1mil (0.025mm). 3.Automatism and convenience: Simple software hardware installation ,.Operate the manufacturing process by striking the function keys of operation system.

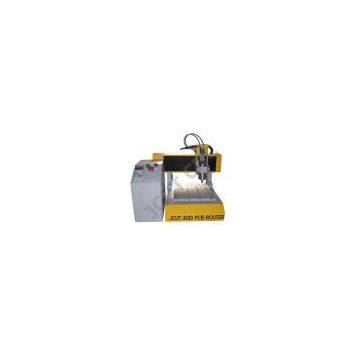

      JCUT- PCB plate making machine
      High efficiency, high precision, small volume, simple operation, It is widely used in junior college, scientific research organization, arms-industry, electron fan, electron factory.
      Product advantage: Advanced: Anti-corrosion PCB making process, the plate making and drill process can be finished in one machine.
      High efficiency: A piece of usual PCB can be made in a few minutes.
      Accuracy : The error less than 1mil
      Convenience: Simple software hardware installation. You can choose operate the manufacturing process by striking the function keys of operation system
      Install the PROTEL.PCB format into machine drive program—NC, plate making, drill, edge, total numerical control operation, one-time shaping. With the control of computer software, the drive motor of X, Y, Z-axes begin to work accordingly and the main shaft motor can be drove according to program order. The main shaping motor drives the cutter to process the workpiece that the user requires. The technology of CNC adopts the physical engraving technique. The made plate don’t pass the process from wet to dry and the process from cold to hot. Mechanical motion can be executed strictly according to order. The situation of conglutination and dark cracks can be discerned in naked eye but not with magnifying glass. Moreover, the software can be operated simply.
      Please contact us to get more information about PCB automatic plate making machine.

Standard Feature:
Model:  JCUT-3030
Machined surface:  single/double
Worktable board (mm):  300X300
Working speed:  8000mm/min or 4200mm/min
Means of communication: PCI or RS232
Working accuracy: 4-8mil
Least line diameter and least line spacing: 4-8mil
Operation system : WIN2000/XP/VISTA
Repeat Accuracy : 0.025mm
The least error of Data control drill : less than 1mil(0.015mm)
Function Request: Protel PCB document can be directly put in.(gerber)
Spindle speed: 24000rpm
Spindle power: 800W
Power supply:  AC210-240V
Volume:  700X750X800mm

Net weight: 75kg
Gross weight: 90KG

And if this one smaller for you , you can choose JCUT-4040PCB machine ,JCUT-4060PCB machine or JCUT-5060PCB machine .

We will send some attachments to you free together with the machine, including software ,manual, more bits, pump, spanners , press board , etc , i am sure you will use the machine easily and happily .
