Ultrasound Scanner

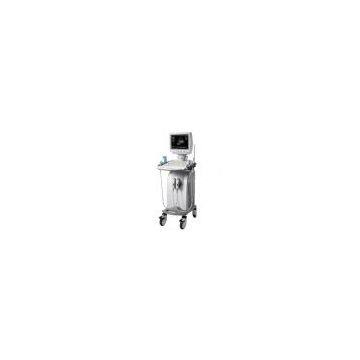

CMS600C-2 B/W ultrasonic diagnostic system,which uses the latest beam forming

algorithm, complex spatial and frequency compounding methods, advanced signal

processing, high quality probe in wide range frequency,advanced image processing

technology, is suitable for examination and diagnosis of abdomen, gynecology, OB/

GYN, heart and small parts.

Features

■ Full digital beamforming technology

■ All focus technology: achieve transmit/receive  both direction point-point focusing.

■ Ultra low transmit power: one eighth of transmit ultrasound power comparing to

     traditional beamforming method.

■ Powerful adjustable image processing: 128 level of total gain adjustment, adjustment,

   gray scale adjustment, frame mixing. 80 level of dynamic range adjustment. Etc.

 ■ Complete application packages: easy user interface, accurate measurement

Specifications

■ Scanning mode: B, B/B, B/M, M,varied zoom, the image is scrollable.

■ Focus: All focusing beam forming technology.

■ Cine Loop: 384 frames

■ Image processing:

■ Real time flexible zooming, wide range γ adjustment, window curve control, STC

     curve, frame correlation, 256 gray scale,cine loop and image storage, dynamic

     range, edge enhancement, image reverse function

 ■ Body Mark: 60 kinds

 ■ OB table: Tokyo, Hadlock, Hansmann

 ■ Measurement & Calculation:

 ■ Distance, perimeter, area, volume, heart rate, depth, time, speed, LV (Left Ventricle),

    AO (Aorta), MV (Mitral Valve), RV/LV, GS,BPD, CRL, FL, GL,TAD, LV, OFD,AC,HC,

    pregnant week and fetal weight. It has OB report and LMP functions.

 ■ Video out: PAL,SVGA

 ■ Graphic User Interface:

 ■ ID, date, time, focus, guage, hospital name,measuring value, gray scale, probe type

    and frequency, probe position, display mode, scan direction, multiple-ratio, focus,

    puncture guide line, image process information and notes.

■ Other functions: Screen protects and probe protects, light keyboard, permanent

   storage and software update function.

Standard Configuration:

■ Main unit with SVGA, a 2.5 ¨C 5MHz convex probe .

Options

■ 2.5-5MHz convex heart probe

■  5-7.5MHz convex vaginal probe

■  2.5-5MHz linear abdominal probe

■  6.5-8.5MHz linear facial probe

■  B/W video printer, USB printer, USB DVD writer, USB standard 101 keyboard, USB

    mouse.
