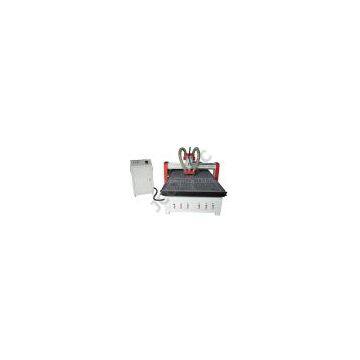

Woodcutting Machine,CNC Router Machine

JCUT- 1325B (51''x98'')
Features:
1) Machine body: Whole cast iron
2) Guideway: XYZ-axis use linear guideway
3) D riving mode: Rack
4) Work dimensions: 1, 3 00 mm x 250 0 mm x 80mm (
5) Body dimensions: 1, 7 00 mm x 32 00 mm x 1, 65 0mm (with bracket)
6) Z-axis working area: 80mm (or 150mm)
7) Max. Feeding height: 120mm or bigger
8) Cut thickness of material: ≤ 40mm
9) Max. Speed: 25, 000mm/min
10) Working speed: 0 - 8, 000mm/min
11) Mechanical precision: 0.01mm
12) Software: Type 3 software, Artcut software, Artcam software
13) Max. Power consumption: 3 kW
14) Power source: AC 220/50 /60 Hz (or 110v/60Hz)
15) Driver type: Stepper motor (XZ-85BYG, Y-axis use two 85BYG motors)
16) Memory: Without or (DSP)
17) Spindle: 2.2 kW ( 100mm) variable speed, water cooled motor ( 3kW, or bigger
18) Spindle speed: 0 - 24, 000rpm /min
19) Blade diameter: 3.175mm, 4mm, 6mm ( or 8mm, 10mm, 12mm, 12.7mm )
20) Control system: (NCSTUDIO) or DSP (USB interface)
21) Command: G code, u00, mmg, plt
22) Running circumstance temperature: 0 - 45 ° C
23) Relative humidity: 30% - 75%
Packing:
Pack dimensions: 1, 75 0 x 30 00 x 1, 75 0mm
Net weight: 110 0kg (with bracket)
Gross weight: 1300 kg

Applications:
Can be used on advertisement engraving, advertisement cutting, stone processing
Cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting,
Wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building
Mold cutting, indoor decoration cutting, wave board processing cutting, light equipment
Mold processing cutting, sign and mark manufacturing cutting,
Acryl board processing cutting, stamp cutting
