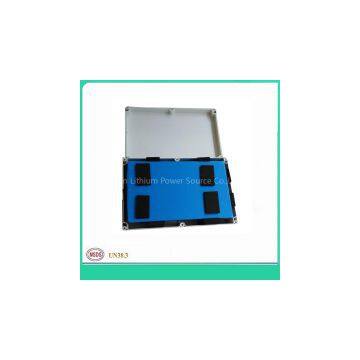

Rechargeable solar LiFePO4 24v 20ah battery pack for power station:
Parameter of LiFePO4 24v 20ah battery pack:
Cell
model
GLP20AH-70170240
Capacity(0.5C)
20ah
rated voltage(V)
3.2V
Typical Impedance (mΩ)
≤2mW
Battery material
LiFePO4
PACK
Combination method
1P8S
Minimal capacity(0.5C)
20Ah
Nominal voltage
24V
Max. charge voltage
28.8±0.1V
Discharge cut-off voltage
16±0.3V
Max Charge current
(0.5C)10A
Max Working current
(1C)20A
Standard charge current
(0.2C)4A
Standard charge current
(0.5C)10A
Pack Impedance standard
≤40mW
Weight (Approx.)
≈4.5 Kg
Max. dimension(L×W×H)(mm)
≤245*175*56
Operating temperature
Charge temperature
0°C~45°C
Discharge temperature
-20°C~55°C
BMS
Single cell over-charge cut-off voltage
3.85±0.05V
over-charge release voltage
3.65±0.1V
Single cell under-discharge cut-off voltage
2.30±0.1V
Discharge release voltage
2.50±0.08V
Continuous operating current
10A
Over-discharge cut-off current
40±5A
Over-discharge cut-off current delay
1.5S±0.5S
Short-circuit protection
Have
Short-circuit protection delay
450uS
Condition for the recovery of over-current over-discharge and Short-circuit
Remove load recover automatically
Balance current
/
Fetures of LiFePO4 24v 20ah battery pack:
1. High temperature resistance
2. High working voltage for single battery cells
3. Pollution-free
4. Long cycle life(≥2000 times)
5. No memory effect
7. With short-circuit production function, safe and reliable
8. Factory price& High quality
9. No self discharge
10. Light weight, small size
