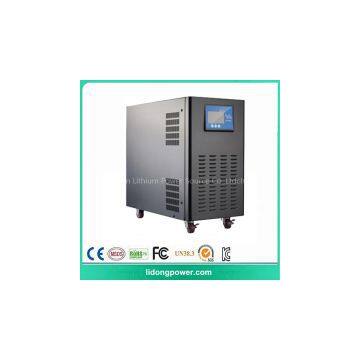

3.6KWH Home Usage Energy Storage System for UPS,EPS

3.6KWH Home usage Energy Storage System for UPS,EPS :

Features of  3.6KWH Energy Storage System :

1. MPPT controller, maximize utilization of solar panels

2. Integrated design with controller, inverter and transformer

3. Pure sine wave output

4. Output isolated transformer, safe and stable

5. Mains/diesel generator input interface (optional)

6. Excellent overload capacity

7. Suitable for all sorts of electrical appliances

8. Intelligent battery management function

9. Complete protections

10. LCD display + LED status indicator

Specification of  3.6KWH Energy Storage System :

Model

3.6kW

Battery Voltage

96V

Battery Capacity

38Ah Lifeo4 Battery

Solar Charge Controller Parameters

Charger type

MPPT

Rated Input power (W)

3000W

PV Input voltage (V)

150~300Vdc

Recommended Input voltage (VDC)

240VDC

Max. input current (A) of 3.6KWH Energy Storage System

30A

Max. output current (A)

30A

Default charging ratio

0.15C(default 200AH)

Floating charging voltage

108Vdc

Equalization charging voltage

109.5Vdc

AC Charger Parameters

AC power input voltage range (Vac)

90~125Vac (60Hz)

Input frequency (Hz)

60Hz±3%

AC charging current (A)

Standard: 10A; Max: 15A

Inverter Parameters

Inverter output voltage

110Vac±3%;

Output frequency

60Hz±1%

Efficiency

>85%

Overload capacity

105~120%, 30s; 120~150, 10s; >150%, 5s, output short circuit<0.1ms

Crest factor

3:1

Output wave

Pure Sine Wave

General Parameters

Display

LCD+LED

Display content

PV status, battery capacity, AC input voltage, AC output voltage, load , running status

Complete protections

DC & AC overload, under-voltage, SPD, short-circuit, overcharge, overdischarge, over-temperature

Cooling method

Forced air cooling

Communication

RS232 (optional)

Noise emission [dB (A)]

<60 (at 1 meter)

Operating temperature range (°C)

–20~+50 (>50°C derating)

Storage temperature range (°C)

-15°C~70°C

Relative humidity in operation

0~90%,(non condensing)

Max. operating altitude (m)

(>1000m, derating)

Dimension [bat. out (D*W*H mm)]

982*660*666mm

Weight  (kg)

60kg
