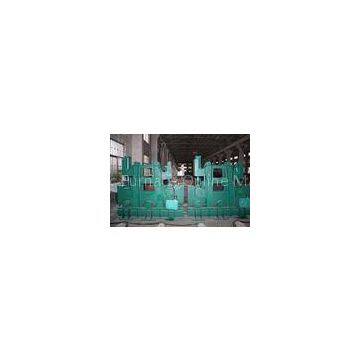

R8M 2 Strands Steel Casting Machine 15T per Hour With Simple Cooling Bed
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Industrial Aluminum Copper Pipe / Tube Cutting Machine , Circular Saw Cutting Machine
-
Small Electric Melting Furnace 1-2Kw Max.1200C JC-K-220-2
-
0.85T Zinc Melting Furnace , 3000KG 700KW Electric Melting Furnace
-
Electrical control cabinet and enclosures monitor / temperature control cabinet
-
Iron Core of Water Jacket electric smelting furnace , Electric Furnace Parts
-
R10M Semi-portal Steel Casting Machine 15T per Hour with ISO
Product Details
| Brand Name | HAIJUN | Place of Origin | China | |
| Model Number | R4M 2strands |
Product Description
R8M 2 Strands Steel Casting Machine 15T per Hour With ISO Centrification
radius: R4M,R6M,R8M,R10M
Strand number : 2 strands
with ISO certification
advanced design
safe operation
Description:
1. Basic standby technical parameters:
|
Steel billet casting machine radius |
4m |
|
Strand quantity |
2 strands |
|
Ladle support type |
Ladle turret,Ladle car,ladle mounts |
|
Tundish carriage |
Semi-portal, cross sliding function |
|
Casting method |
Metering nozzle, open casting |
|
Secondary cooling |
Water cooling , 1 adjusting circuit |
|
Withdrawal straightening machine |
Totally 5 roller, progressive straightening |
|
Roll table |
Chain group centralized drive |
|
Dummy bar |
Rigid, with self-adapting dummy bar head |
|
Billet cutting |
Manual cutting |
|
Billet conveying |
Group centralized live roller table |
|
Cooling bank type |
Simple cooling bed |
2. Technical process description and capacity of steel billet CCM
Induction furnace:
|
Nominal capacity |
15T |
|
Tap-to-tap cycle |
60min |
|
Furnace quantity |
2set |
Production capacity
|
Working days |
330 days/year |
|
Average number of daily furnace |
24/day |
|
Production capacity |
100,000t/year |
3. Casting speed, productivity and strand quantity
R4m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:
|
Casting sectional area(mm) |
80×80 |
100×100 |
120×120 |
|
Casting speed(m/min) |
3.0 |
2.8 |
2.6 |
|
NO. |
Billet size |
Casting speed |
hourly output (tons) |
Daily output 24hour (tons) |
Annual output(330days) (tons) |
|
1 |
80×80 |
3.0m/min |
7.42 |
178 |
58,766 |
|
2 |
100×100 |
2.8m/min |
10.81 |
259. |
85615 |
|
3 |
120×120 |
2.6m/min |
15.69 |
377 |
124,266 |
The calculation results is the ideal state of the production, please according to own actual situation of adjustment.
|
Steel grade |
