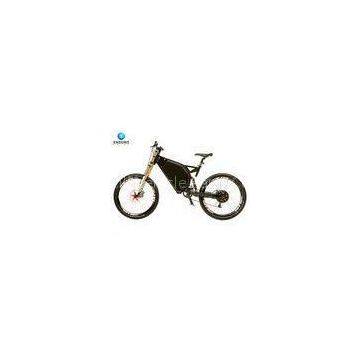

Full Suspension Steel KTM Enduro Bike 9 Speed Mountain Bike With SRAM X9 Derailleur

Full Suspension Steel KTM Enduro Bike 9 Speed Mountain Bike With SRAM X9 Derailleur thumbnail-1
Full Suspension Steel KTM Enduro Bike 9 Speed Mountain Bike With SRAM X9 Derailleur photo-1
US$ 2500 / - 2500 / MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Enduroebike
Place of Origin:
China
Model Number:
Stayer-01
Contact Supplier Request Quote Chat Now
Changzhou Leili Vehicle Parts Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Enduroebike
Place of Origin China
Model Number Stayer-01
Delivery Time:20 working days after receiving payment.
Certification:CCC,CE

9speed 1500w 48v electric enduro bike 150km distance range 50km

Specifications:

Speed: 25-60 kph max speed

Loading: 200kgs max

Range: Basic pedal assist: 150km ,Throttle only: 60-100 km

Colors: black and white

Two years warranty

9s freewheel , 14T

SRAM throttle

Description:

1, frame full suspension steel frame, black and white color
2, wheel size  26\" x 2.15 wheel, sunrigle MT33 rim
3, handerbar Electric enduro handerbar
4, Stem SRAM
5, Headset VP compents
6, Chain KMC stainless strength rust resistant chain
7, spoke 14g high strong spoke front wheel, 12g for rear motor wheel
8, front fork ZOOM front fork
9, Rear shock DNM 220 -RC model
10, saddle Selle Royal (Italy)
11, brakes SRAM BB5 electric disc brake 203 stainless disc
12, pedal CNC alumium alloy pedal black color
13, gearing 9speed SRAM shifter X5
14, Derailleur SRAM X9
15, motor 48v 1500w brushless gearless
16, battery 48v 30ah Panasonic lithium battery, 800 times cycles life
17, dislay lcd display, show speed, range, watts, time and so on
18, charger 48v 6amp charger 100-240v , EU,AU,UK and USA plug for choosing.
19, range 150km
20, speed 50-60km/h
21, loading 200kgs
22, weight 35kgs
23, color black or white
24, controller smart controller 48v 40amp programmable via pc
25,  app yes, coming soon .

Material : steel frame and plastic cover which is using high quality strong 4mm ABS+PMMA anti-scratch glossy plastic.
Rear shock : 190mm-240mm are suitable.
Head tube for 1.1/8-inch non-integrated steering tube, 130 mm in length.Seat post 34.6 mm.
                                                                                                                                                       Spindle – square taper (the bottom bracket with sealed bearings is included in the frame delivery package).
Dropout width (motor mounting seat in the swing gram) 155x10 mm and 135x10mm (you can change by your self)
Standard derailleur mounting (derailleur hanger), included in the delivery package.
Wheel size: 26\" bicycle front wheel with 26\" rear motor wheel, 24\" front wheel and 24\" rear motor wheel, 19\" motorcycle front wheel with 17\" or 18\" motorcycle motor wheel .

Package details :

98% assebling .

Wood pack with foam. See picture .
