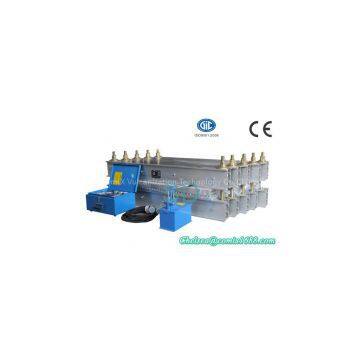

Industry-leading SD Rubber Belt Conveyor Vulcanizing Machine

SD Advantages

1.Our vulcanizing machines and repair machines adopt the unique technology full-automatic and precision digital control system. Vulcanizing temperature is uniform and accurate. Vulcanization pressure is also uniform, It is easy to be operated. The weight is lighter than the original one. Quality is reliable and durable. Our level is much higher than the counterparts both in China and abroad .

2. The upper and below  heating plate

We choose aluminum alloy material with high quality and adopt  high strength aluminum alloy to manufacture. The process is special, its characteristics are as follows:

(1)It has small volume and  light weight(as half as before),the consumption is low and heating is very fast. After heating, the whole piece of board face is very flexible , more close to the tape than the conventional machine .Under the pressure of 1.5 mpa, the parallel close is not more than 0.03 mm, but the conventional machine does not have the performance.

(2)Various points of upper and below heating plate can be heated uniform .After heating for10 min, the temperature difference of the each point  in the face is only + / - 3 ℃ ~ 4 ℃, which surpasses  the international standard.

Technical Parameters

1.Machine Maximum size: from 300MM-6000MM;

2.Voltage: 220V 380V 415V 660V 50HZ;

3.Fast Cooling time: 15 minutes (from 145 degrees down to 70  degrees or less);

4.Time for temperature raise (from normal temperature to vulcanizing temperature)no more than 25 minutes;

5.The temperature difference of sulfide surface: ±2°c.

6.Temperature adjustment range: 0~300°c.

7.Vulcanizing pressure: 0~2.5 MPa

  (details refer to users' specifications and factory markings);

8.Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts;

9.Splicing length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary;

10.Rubber conveyor belt as well as tension in kilogram required for vulcanizing jointing when ordering products.

11.Users could order spare electric pumps additionally according to requirements.
