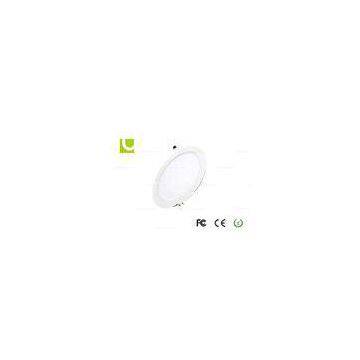

Indoor IP20 80Ra 15W Kitchen LED Downlights Fixtures With 120 Degree Beam Angle

Delivery Time:10 working days after received your payment
Certification:CE/ROHS/FCC

Diameter 200mm Round LED Recessed Panel Downlight 15W With Natural White IP20 for office lighting


Specifications:

LED Source	120pcs SMD 2835 Epistar
Input Voltage	AC200~240V, 50/60HZ
Housing	PMMA+Aluminum
CCT	WW2700-3200K, NW4000-4500K,CW 6000-6500K
CRI	>80Ra
Dimming Type	PWM Dimming
Frame	Unprocessed virgin aluminum/White coating aluminum
Operating Temp. & Humidity	-10 ~ +65 cesius, 10~80%
Storage Temp. & Humidity	-40 ~ +85 cesius, 10~80%
IP Rating	IP42
Beam Angle	120
Installation	Suspended/Mounted/Recessed
Gross Weight	5g/pc
Package	1pc/box , 5pcs/carton
Carton Size	491*505*230
Expected life span	50,000 Hrs
Certification	CE, RoHS

 Description:

 Power: 15W  Size: Φ200mm*H20mm  Luminous Flux:1100lm  Input Voltage: 220V~240VAC  Color Temperature: 6000K  Certification: CE,ROHS,EMC,LVD  Warranty: 3years  Power Factors: ≥0.9

Competitive Advantage:

 Perfect side-lighting source with ultra thin frame technology.  Adopt Mitsubishi (Japan) light guide plate with highest >90% light transmittance  Environmentally friendly, No IR & UV light radiation, No glare or interference, conforming to  CE.  Available modes: Standard, PWM dimmable, Triac dimmable.  Long life time 62,000 Hours life span of 90% energy saving hence lower electric costs.

Applications:

General Housing: Homes, Offices, Schools. Commercial: Shopping malls, Hospitals. Industrial: Factories, Photo Studios. Presentations: Museums, Exhibitions This panel light is a kind of superior indoor lighting lamp, the edge frame is made of 6063 aluminum by anodic oxidation. It adopts high brightness SMD2835 as light source,  the LED light becomes an equal panel lighting effect after permeating the light guide plate with high transmission rate. The LED panel lamp is mainly used for meeting room, negotiation room, hotels and other indoor lighting places, etc. The unique design of the LED panel lamp makes the entire light get well and equal illumination, which can reduce the tired feeling of eyes.   Considering from green light design, it has smooth outsideappearance and low power consumption, and the materials is environment friendly. It does better than the Grille lamp on lighting efficiency and brightness. It is going to replace the Grille light with source of T8 fluorescent tubes. The lifespan of LED panel lamp is 10 times of the traditional tube lights, but the power consumption is only a half. It has ultra thin design appearance and 4 edges connected with each other smoothly, which makes perfect effects.  Our Panel Light has triac dimmer and PWM dimmer function. It adopts isolated MW power supply and driven by constant current,Dimmable rank: 1%-100%. The efficiency of power supply can reach to 95%, and power factor will be more than 0.95. It has features of no pollution to electrified wire netting, stable function, safe and reliable.

Our Services:
 Why choose us?

 warmly  welcome anyone who would like to do business with us to visit our factory and office; as we have our own factory with trading department,we have the most professional staffs to answer any of your questions about products; trial order with small quantities is available for our first cooperation and we can also provide you with wholesale price;

FAQ:

What is your product range: Indoor: Bulbs..panel lamps...spot  lamps..bulbs..downlight. Outdoor: flood lamps..street lamps. Are you a manufacturer? Yes..ULlighting has been a professional manufacturer in led lighting area
