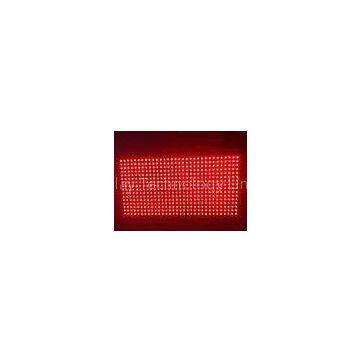

DIP570 Scrolling LED Display Module Flexible Outdoor / Indoor RGB Full Color P10

FOB Price

US$ 4 - 5 / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Product Description

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

DIP570 Scrolling LED Display Module Flexible Outdoor / Indoor RGB Full Color P10

Advantages:

Pixel pitch: P10mm
Size: 320 mm * 160 mm (12.598 inch * 6.299 inch)
LED type: DIP 3 In 1
Hub type: Hub75
Brightness: 8000 CD

Technical Specification:

Item	P10
Pixel pitch	10mm
Module size	320mm*160mm
Module resolution(dots)	32*16
Pixel configuration	1R1G1B
Pixel density	10000dots/m²
Red wavelength	625±2nm
Green wavelength	525±2nm
Blue wavelength	470±2nm
Colors	16777216
Best viewing distance	≥10m
Horizontal view angle	120°
Maximum power consumption	<1500W/m²
Brightness	≥8000cd/m²
Gray scale	16 bits per color
Color temperature	6500k
Control method	Synchronization&Asynchronization
Driving method	1/4 scanning
Frame frequency	60Hz
Refresh frequency	≥300Hz
Working voltage	AC220V/110V±10%
IP grade	IP 67
Working temperature	-20°C~80°C
MTBF	>10,000 hours
Life span	>100,000 hours

1 P10 Single Red / white / bule / green / yellow 320x160mm modules

2 P10 dual color 1R1G 320X160mm / P16 dual color 2R1G / 2R1B 256X128mm modules

3 DIP P10/P16/P20 outdoor full color led module /sreen series

4 DIP570 P6.67, P8,P10 ,P13.33 RGB 3in1 outdoor full color module /screen series

5 SMD indoor P4/ P5/P6/P7.62/P8/P10 full color led screen series

Module size	320mm(W)*160mm(H)
Pixel pitch	10mm
pixel Density	10,000 dots/m2
Pixel configuration	1R1G1B DIP 3in1
Pixel resolution	32dots(W)*16dots(H)
Working voltage	DC5V
Ambient Temperature	storage: - 35°C ~ + 85°C
working: - 20°C ~ + 65°C
Working humidity	≤90 ~ 95%
Driving device	Constant Current Driver IC
Drive type	1/8 scan driving
Grey scale/colors	256 levels of each color(R/G/B)/ 16.7M colors
Brightness of white balance	≥8,000cd/m2

Dip P10 Full Color Led Module Outdoor Dip Ph10 P10 Rgb 32*16 Hot-Sale Dip 3In1 Full Color Led Display Module
